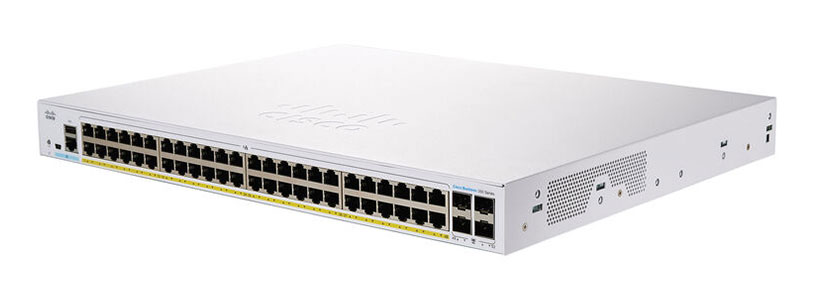

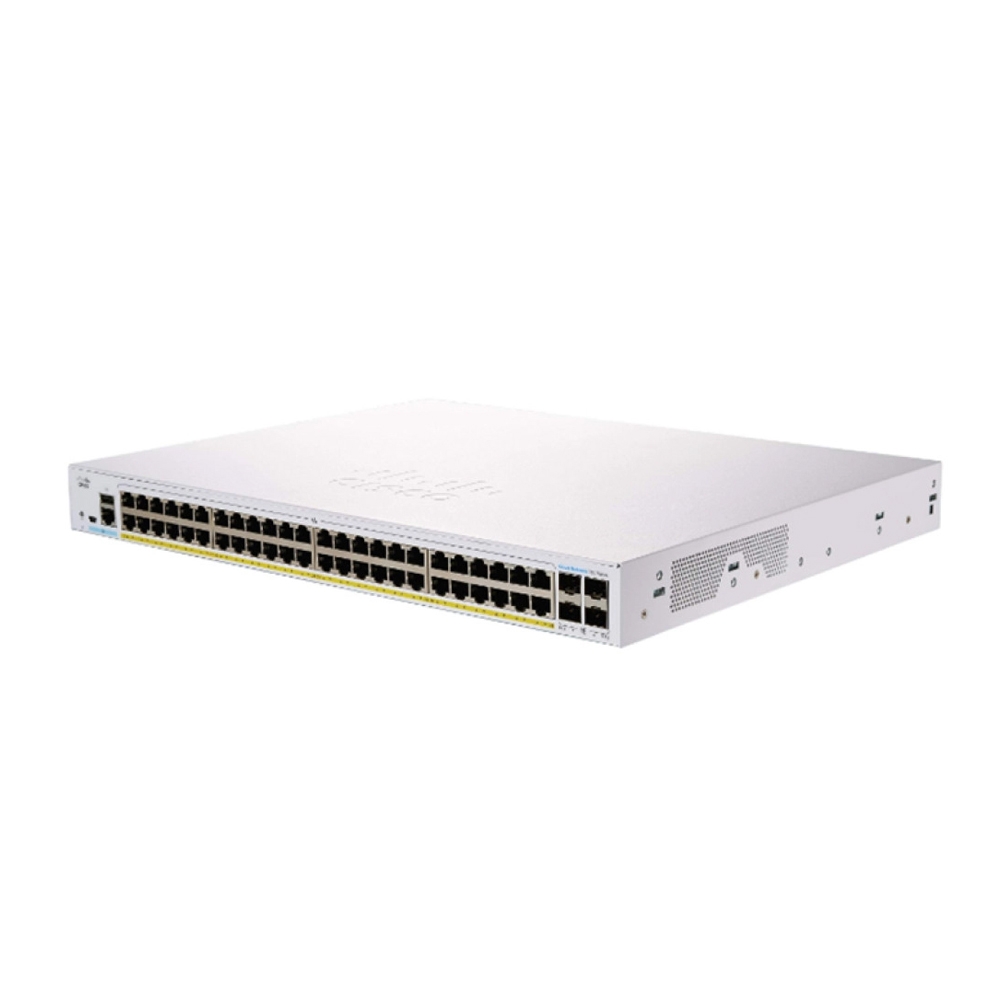

Cisco CBS350 Managed 48-port GE, PoE, 4x1G SFP

Cisco CBS350 Managed 48-port GE, PoE, 4x1G SFP - CBS350-48P-4G-EU

Mã: CBS350-48P-4G-EU

Thương hiệu: CISCO | Tình trạng: Còn hàng

Thiết Bị Mạng Cisco CBS350 Managed 48-port GE, PoE, 4x1G SFP - CBS350-48P-4G-EU

Thiết bị chuyển mạch CBS350-48P-4G-EU là một phần của dòng giải pháp mạng Cisco Business, có thể quản lý, giá cả phải chăng, hỗ trợ xây dựng hệ thống mạng cho các văn phòng.
CBS350-48P có thể kết nối đơn giản và an toàn các nhân viên làm việc trong các văn phòng với nhau và với tất cả các máy chủ, máy in và các thiết bị mạng khác mà họ sử dụng,
Switch Cisco CBS350-48P-4G cung cấp sự kết hợp lý tưởng giữa chi phí và hiệu năng cho văn phòng nhỏ
Hỗ trợ 48 port 10/100/1000 PoE+ với tổng công suất 370W và 4 cổng uplink SFP

Thiết bị chuyển mạch CBS350-48P-4G-EU là một phần của dòng giải pháp mạng Cisco Business, có thể quản lý, giá cả phải chăng, hỗ trợ xây dựng hệ thống mạng cho các văn phòng. CBS350-48P có thể kết nối đơn giản và an toàn các nhân viên làm việc trong các văn phòng với nhau và với tất cả các máy chủ, máy in và các thiết bị mạng khác mà họ sử dụng.

Switch Cisco CBS350-48P-4G cung cấp sự kết hợp lý tưởng giữa chi phí và hiệu năng cho văn phòng nhỏ, hỗ trợ 48 port 10/100/1000 PoE+ với tổng công suất 370W và 4 cổng uplink SFP.

Thiết bị chuyển mạch Cisco Business 350 Series, một phần của dòng giải pháp mạng Cisco Business, là một danh mục các thiết bị chuyển mạch được quản lý giá cả phải chăng cung cấp một khối xây dựng quan trọng cho bất kỳ mạng văn phòng nhỏ nào. Bảng điều khiển trực quan của Cisco CBS350-48P-4G-EU giúp đơn giản hóa việc thiết lập mạng và các tính năng nâng cao đẩy nhanh quá trình chuyển đổi kỹ thuật số, trong khi bảo mật phổ biến bảo vệ các giao dịch quan trọng của doanh nghiệp.

Thiết bị chuyển mạch Cisco CBS350-48P-4G-EU cung cấp sự kết hợp lý tưởng giữa khả năng chi trả và khả năng cho văn phòng nhỏ, đồng thời giúp bạn tạo ra lực lượng lao động hiệu quả hơn, được kết nối tốt hơn.Thiết bị chuyển mạch CBS350-48P-4G-EU là dòng thiết bị chuyển mạch Ethernet được quản lý cấu hình cố định. Tuy nhiên, không giống như các giải pháp chuyển mạch doanh nghiệp nhỏ khác chỉ cung cấp các khả năng mạng được quản lý trong các mô hình đắt tiền nhất, CBS350-48P-4G-EU còn hỗ trợ khả năng quản lý bảo mật nâng cao và các tính năng mạng mà bạn cần để hỗ trợ dữ liệu cấp doanh nghiệp, thoại, bảo mật và công nghệ không dây .

Đồng thời, Cisco CBS350-48P-4G-EU rất dễ triển khai và cấu hình, cho phép bạn tận dụng các dịch vụ mạng được quản lý mà doanh nghiệp của bạn cần.

Sản phẩm liên quan

Model	CBS350-48P-4G-EU
Performance
Capacity in Millions of Packets per Second (mpps) (64-byte packets)	77.38
Switching Capacity in Gigabits per Second (Gbps)	104.0
Layer 2 Switching
Spanning Tree Protocol	Standard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported
Port grouping/link aggregation	Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) - Up to 8 groups - Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN	Support for up to 4,094 VLANs simultaneously Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication CPE VLAN
Voice VLAN	Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver network wide zero-touch deployment of voice endpoints and call control devices
Multicast TV VLAN	Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)
VLAN Translation	Support for VLAN One-to-One Mapping. In VLAN One-to-One Mapping, on an edge interface customer VLANs (C-VLANs) are mapped to service provider VLANs (S-VLANs) and the original C-VLAN tags are replaced by the specified S-VLAN
Q-in-Q	VLANs transparently cross a service provider network while isolating traffic among customers
Selective Q-in-Q	Selective Q-in-Q is an enhancement to the basic Q-in-Q feature and provides, per edge interface, multiple mappings of different C-VLANs to separate S-VLANs Selective Q-in-Q also allows configuring of Ethertype (Tag Protocol Identifier [TPID]) of the S-VLAN tag Layer 2 protocol tunneling over Q-in-Q is also supported
Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP)	Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain
Unidirectional Link Detection (UDLD)	UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or cable/port faults to prevent forwarding loops and black holing of traffic in switched networks
Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2	Relay of DHCP traffic to DHCP server in different VLAN; works with DHCP Option 82
Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping	IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 2K multicast groups (source-specific multicasting is also supported)
IGMP Querier	IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
Head-of-Line (HOL) blocking	HOL blocking prevention
Loopback Detection	Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
Layer 3	IPv4 routing - Wirespeed routing of IPv4 packets - Up to 990 static routes and up to 128 IP interfaces IPv6 routing Layer 3 Interface -Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface Classless Interdomain Routing (CIDR) Policy-Based Routing (PBR) DHCP Server DHCP relay at Layer 3 User Datagram Protocol (UDP) relay
Security	Secure Shell (SSH) Protocol Secure Sockets Layer (SSL) IEEE 802.1X (Authenticator role) Web-based authentication STP Bridge Protocol Data Unit (BPDU) Guard STP Root Guard STP loopback guard DHCP snooping IP Source Guard (IPSG) Dynamic ARP Inspection (DAI) IP/MAC/Port Binding (IPMB) Secure Core Technology (SCT) Secure Sensitive Data (SSD) Trustworthy systems Private VLAN Layer 2 isolation Private VLAN Edge (PVE) with community VLAN Port security RADIUS/TACACS+ RADIUS accounting Storm control DoS prevention Multiple user privilege levels in CLI ACLs Support for up to 1,024 rules
Management	Web user interface SNMP Remote Monitoring (RMON) IPv4 and IPv6 dual stack Firmware upgrade Port mirroring VLAN mirroring DHCP (options 12, 66, 67, 82, 129, and 150) Secure Copy (SCP) Autoconfiguration with Secure Copy (SCP) file download Text-editable config files Smartports Auto Smartports Textview CLI Cloud services Embedded Probe for Cisco Business Dashboard Cisco Network Plug and Play (PnP) agent Localization Login banner Other management
Power over Ethernet (PoE)
Power Dedicated to PoE	370W
Number of Ports That Support PoE	48
Power consumption
System Power Consumption	110V=60.77W 220V=59.73W
Power Consumption (with PoE)	110V=451.95W 220V=445.85W
Heat Dissipation (BTU/hr)	1,542.12
Hardware
Total System Ports	52 Gigabit Ethernet
RJ-45 Ports	48 Gigabit Ethernet
Combo Ports(RJ 45 + Small form-factor pluggable [SFP])	4 SFP
Console port	Cisco Standard mini USB Type-B / RJ45 console port
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	256 MB
CPU	800 MHz ARM
Packet buffer	3 MB
Environmental
Unit dimensions (W x H x D)	445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
Unit weight	5.43 kg (11.97 lb)
Power	100-240V 50-60 Hz, internal, universal
Certification	23° to 122°F (-5° to 50°C)
Storage temperature	-13° to 158°F (-25° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)
FAN	1
Acoustic Noise	25°C: 37.3 dBA
MTBF at 25°C (hours)	856,329

Model	CBS350-48P-4G-EU
Performance
Capacity in Millions of Packets per Second (mpps) (64-byte packets)	77.38
Switching Capacity in Gigabits per Second (Gbps)	104.0
Layer 2 Switching
Spanning Tree Protocol	Standard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported
Port grouping/link aggregation	Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) - Up to 8 groups - Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN	Support for up to 4,094 VLANs simultaneously Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication CPE VLAN
Voice VLAN	Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver network wide zero-touch deployment of voice endpoints and call control devices
Multicast TV VLAN	Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)
VLAN Translation	Support for VLAN One-to-One Mapping. In VLAN One-to-One Mapping, on an edge interface customer VLANs (C-VLANs) are mapped to service provider VLANs (S-VLANs) and the original C-VLAN tags are replaced by the specified S-VLAN
Q-in-Q	VLANs transparently cross a service provider network while isolating traffic among customers
Selective Q-in-Q	Selective Q-in-Q is an enhancement to the basic Q-in-Q feature and provides, per edge interface, multiple mappings of different C-VLANs to separate S-VLANs Selective Q-in-Q also allows configuring of Ethertype (Tag Protocol Identifier [TPID]) of the S-VLAN tag Layer 2 protocol tunneling over Q-in-Q is also supported
Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP)	Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain
Unidirectional Link Detection (UDLD)	UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or cable/port faults to prevent forwarding loops and black holing of traffic in switched networks
Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2	Relay of DHCP traffic to DHCP server in different VLAN; works with DHCP Option 82
Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping	IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 2K multicast groups (source-specific multicasting is also supported)
IGMP Querier	IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
Head-of-Line (HOL) blocking	HOL blocking prevention
Loopback Detection	Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
Layer 3	IPv4 routing - Wirespeed routing of IPv4 packets - Up to 990 static routes and up to 128 IP interfaces IPv6 routing Layer 3 Interface -Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface Classless Interdomain Routing (CIDR) Policy-Based Routing (PBR) DHCP Server DHCP relay at Layer 3 User Datagram Protocol (UDP) relay
Security	Secure Shell (SSH) Protocol Secure Sockets Layer (SSL) IEEE 802.1X (Authenticator role) Web-based authentication STP Bridge Protocol Data Unit (BPDU) Guard STP Root Guard STP loopback guard DHCP snooping IP Source Guard (IPSG) Dynamic ARP Inspection (DAI) IP/MAC/Port Binding (IPMB) Secure Core Technology (SCT) Secure Sensitive Data (SSD) Trustworthy systems Private VLAN Layer 2 isolation Private VLAN Edge (PVE) with community VLAN Port security RADIUS/TACACS+ RADIUS accounting Storm control DoS prevention Multiple user privilege levels in CLI ACLs Support for up to 1,024 rules
Management	Web user interface SNMP Remote Monitoring (RMON) IPv4 and IPv6 dual stack Firmware upgrade Port mirroring VLAN mirroring DHCP (options 12, 66, 67, 82, 129, and 150) Secure Copy (SCP) Autoconfiguration with Secure Copy (SCP) file download Text-editable config files Smartports Auto Smartports Textview CLI Cloud services Embedded Probe for Cisco Business Dashboard Cisco Network Plug and Play (PnP) agent Localization Login banner Other management
Power over Ethernet (PoE)
Power Dedicated to PoE	370W
Number of Ports That Support PoE	48
Power consumption
System Power Consumption	110V=60.77W 220V=59.73W
Power Consumption (with PoE)	110V=451.95W 220V=445.85W
Heat Dissipation (BTU/hr)	1,542.12
Hardware
Total System Ports	52 Gigabit Ethernet
RJ-45 Ports	48 Gigabit Ethernet
Combo Ports(RJ 45 + Small form-factor pluggable [SFP])	4 SFP
Console port	Cisco Standard mini USB Type-B / RJ45 console port
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	256 MB
CPU	800 MHz ARM
Packet buffer	3 MB
Environmental
Unit dimensions (W x H x D)	445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
Unit weight	5.43 kg (11.97 lb)
Power	100-240V 50-60 Hz, internal, universal
Certification	23° to 122°F (-5° to 50°C)
Storage temperature	-13° to 158°F (-25° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)
FAN	1
Acoustic Noise	25°C: 37.3 dBA
MTBF at 25°C (hours)	856,329
