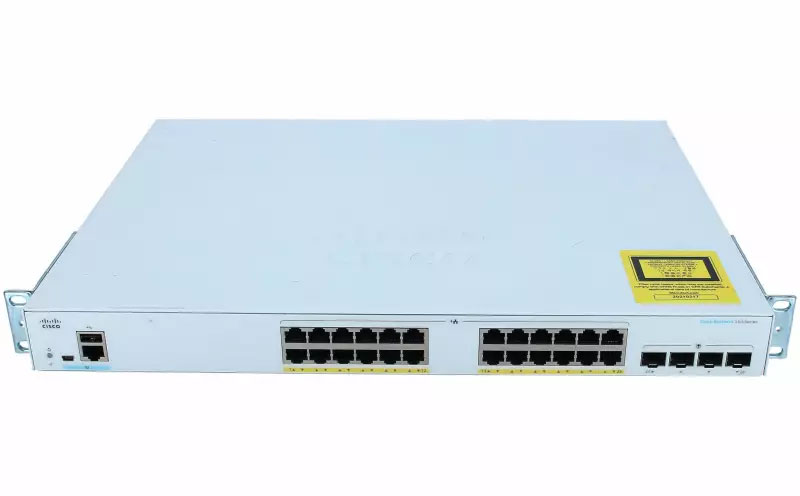

Cisco CBS350 Managed 24-port GE, Full PoE, 4x1G SFP

Cisco CBS350 Managed 24-port GE, Full PoE, 4x1G SFP - CBS350-24FP-4G-EU

Mã: CBS350-24FP-4G-EU

Thương hiệu: CISCO | Tình trạng: Còn hàng

Thiết Bị Mạng Cisco CBS350 Managed 24-port GE, Full PoE, 4x1G SFP - CBS350-24FP-4G-EU

Thiết bị chuyển mạch CBS350-24FP-4G-EU là một phần của dòng giải pháp mạng Cisco Business, có thể quản lý bằng console hoặc WEB, bao gồm các tính năng chuyển mạch, routing layer 3 và bảo mật.

CBS350-24FP hỗ trợ các tính năng quản lý bảo mật và tính năng mạng tiên tiến mà bạn cần để hỗ trợ các công nghệ dữ liệu, thoại, bảo mật và không dây cấp doanh nghiệp.

Switch Cisco CBS350-24FP-4G cung cấp sự kết hợp lý tưởng giữa chi phí và hiệu năng cho văn phòng nhỏ, hỗ trợ 24 port 10/100/1000 PoE+ với công suất 370W và 4 cổng uplink SFP.

Thiết bị chuyển mạch CBS350-24FP-4G-EU là một phần của dòng giải pháp mạng Cisco Business, có thể quản lý bằng console hoặc WEB, bao gồm các tính năng chuyển mạch, routing layer 3 và bảo mật. CBS350-24FP hỗ trợ các tính năng quản lý bảo mật và tính năng mạng tiên tiến mà bạn cần để hỗ trợ các công nghệ dữ liệu, thoại, bảo mật và không dây cấp doanh nghiệp.

Sản phẩm liên quan

Model	CBS350-24FP-4G-EU
Ports	- Total System Ports: 28 x Gigabit Ethernet - RJ45 Ports: 24 x Gigabit RJ45 - SFP Ports : 4 x Gigabit SFP
Power over Ethernet (PoE)	802.3af PoE, 802.3at PoE+ or 60W PoE delivered over the RJ-45 ports: - Power Dedicated to PoE: 370W - Number of Ports That Support PoE: 24
Performance	- Capacity in Millions of Packets per Second (mpps) with each packet being 64-bytes: 41.66 - Switching Capacity in Gigabits per Second (Gbps): 56
MAC Address Table Size	Up to 16K MAC addresses
Frame Sizes	Frame sizes up to 9K bytes. The default MTU is 2K bytes
Console port	Cisco standard mini USB Type-B/RJ45 console port
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
LEDs	System, Link/Act, Speed
Flash	256 MB
CPU	800 MHz ARM
DRAM	512 MB
Packet buffer	1.5 MB
Supported SFP modules	MGBSX1 MGBLX1 MGBLH1 MGBT1 GLC-SX-MMD GLC-LH-SMD GLC-BX-U GLC-BX-D GLC-TE SFP-H10GB-CU1M SFP-H10GB-CU3M SFP-H10GB-CU5M SFP-10G-SR SFP-10G-LR SFP-10G-SR-S SFP-10G-LR-S
FAN (Number)	1
Acoustic Noise	25°C: 34.8 dBA
MTBF at 25°C (hours)	698,220
Certification	UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Power	100-240V 50-60 Hz, internal, universal
Power consumption (worst case)	System Power Consumption: - 110V=46.60W - 220V=46.35W Power Consumption (with PoE): - 110V=449.7W - 220V=438.3W
Unit dimensions (W x D x H)	445 x 345 x 44 mm (17.5 x 13.59 x 1.73 in)
Unit weight	4.6 kg (10.14 lb)
Package Contents	- Cisco Business CBS350-24FP-4G-EU Managed Switch - Power Cord - Mounting Kit - Quick Start Guide
Layer 2 Switching	• Spanning Tree Protocol • Port grouping/link aggregation - Up to 8 groups - Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation • VLAN -Support for up to 4,094 VLANs simultaneously -Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN -Management VLAN -Private VLAN with promiscuous, isolated, and community port -Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks -Guest VLAN, unauthenticated VLAN -Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication -CPE VLAN • Voice VLAN • Multicast TV VLAN • VLAN Translation • Q-in-Q • Selective Q-in-Q • Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) • Unidirectional Link Detection (UDLD) • Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2 • Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping • IGMP Querier • IGMP proxy • Head-of-Line (HOL) blocking • Loopback Detection
Layer 3	• IPv4 routing - Wirespeed routing of IPv4 packets - Up to 990 static routes and up to 128 IP interfaces • IPv6 routing • Layer 3 Interface - Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface • Classless Interdomain Routing (CIDR) • RIP v2 • Policy-Based Routing (PBR) • DHCP Server • DHCP relay at Layer 3 • User Datagram Protocol (UDP) relay
Security	• Secure Shell (SSH) Protocol • Secure Sockets Layer (SSL) • IEEE 802.1X (Authenticator role) • Web-based authentication • STP Bridge Protocol Data Unit (BPDU) Guard • STP Root Guard • STP loopback guard • DHCP snooping • IP Source Guard (IPSG) • Dynamic ARP Inspection (DAI) • IP/MAC/Port Binding (IPMB) • Secure Core Technology (SCT) • Secure Sensitive Data (SSD) • Trustworthy systems • Private VLAN • Layer 2 isolation Private VLAN Edge (PVE) with community VLAN • Port security • RADIUS/TACACS+ • RADIUS accounting • Storm control • DoS prevention • Multiple user privilege levels in CLI • ACLs Support for up to 1,024 rules
Management	• Web user interface • SNMP • Remote Monitoring (RMON) • IPv4 and IPv6 dual stack • Firmware upgrade • Port mirroring • VLAN mirroring • DHCP (options 12, 66, 67, 82, 129, and 150) • Secure Copy (SCP) • Autoconfiguration with Secure Copy (SCP) file download • Text-editable config files • Smartports • Auto Smartports • Textview CLI • Cloud services • Embedded Probe for Cisco Business Dashboard • Cisco Network Plug and Play (PnP) agent • Localization • Login banner • Other management

Model	CBS350-24FP-4G-EU
Ports	- Total System Ports: 28 x Gigabit Ethernet - RJ45 Ports: 24 x Gigabit RJ45 - SFP Ports : 4 x Gigabit SFP
Power over Ethernet (PoE)	802.3af PoE, 802.3at PoE+ or 60W PoE delivered over the RJ-45 ports: - Power Dedicated to PoE: 370W - Number of Ports That Support PoE: 24
Performance	- Capacity in Millions of Packets per Second (mpps) with each packet being 64-bytes: 41.66 - Switching Capacity in Gigabits per Second (Gbps): 56
MAC Address Table Size	Up to 16K MAC addresses
Frame Sizes	Frame sizes up to 9K bytes. The default MTU is 2K bytes
Console port	Cisco standard mini USB Type-B/RJ45 console port
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
LEDs	System, Link/Act, Speed
Flash	256 MB
CPU	800 MHz ARM
DRAM	512 MB
Packet buffer	1.5 MB
Supported SFP modules	MGBSX1 MGBLX1 MGBLH1 MGBT1 GLC-SX-MMD GLC-LH-SMD GLC-BX-U GLC-BX-D GLC-TE SFP-H10GB-CU1M SFP-H10GB-CU3M SFP-H10GB-CU5M SFP-10G-SR SFP-10G-LR SFP-10G-SR-S SFP-10G-LR-S
FAN (Number)	1
Acoustic Noise	25°C: 34.8 dBA
MTBF at 25°C (hours)	698,220
Certification	UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Power	100-240V 50-60 Hz, internal, universal
Power consumption (worst case)	System Power Consumption: - 110V=46.60W - 220V=46.35W Power Consumption (with PoE): - 110V=449.7W - 220V=438.3W
Unit dimensions (W x D x H)	445 x 345 x 44 mm (17.5 x 13.59 x 1.73 in)
Unit weight	4.6 kg (10.14 lb)
Package Contents	- Cisco Business CBS350-24FP-4G-EU Managed Switch - Power Cord - Mounting Kit - Quick Start Guide
Layer 2 Switching	• Spanning Tree Protocol • Port grouping/link aggregation - Up to 8 groups - Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation • VLAN -Support for up to 4,094 VLANs simultaneously -Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN -Management VLAN -Private VLAN with promiscuous, isolated, and community port -Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks -Guest VLAN, unauthenticated VLAN -Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication -CPE VLAN • Voice VLAN • Multicast TV VLAN • VLAN Translation • Q-in-Q • Selective Q-in-Q • Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) • Unidirectional Link Detection (UDLD) • Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2 • Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping • IGMP Querier • IGMP proxy • Head-of-Line (HOL) blocking • Loopback Detection
Layer 3	• IPv4 routing - Wirespeed routing of IPv4 packets - Up to 990 static routes and up to 128 IP interfaces • IPv6 routing • Layer 3 Interface - Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface • Classless Interdomain Routing (CIDR) • RIP v2 • Policy-Based Routing (PBR) • DHCP Server • DHCP relay at Layer 3 • User Datagram Protocol (UDP) relay
Security	• Secure Shell (SSH) Protocol • Secure Sockets Layer (SSL) • IEEE 802.1X (Authenticator role) • Web-based authentication • STP Bridge Protocol Data Unit (BPDU) Guard • STP Root Guard • STP loopback guard • DHCP snooping • IP Source Guard (IPSG) • Dynamic ARP Inspection (DAI) • IP/MAC/Port Binding (IPMB) • Secure Core Technology (SCT) • Secure Sensitive Data (SSD) • Trustworthy systems • Private VLAN • Layer 2 isolation Private VLAN Edge (PVE) with community VLAN • Port security • RADIUS/TACACS+ • RADIUS accounting • Storm control • DoS prevention • Multiple user privilege levels in CLI • ACLs Support for up to 1,024 rules
Management	• Web user interface • SNMP • Remote Monitoring (RMON) • IPv4 and IPv6 dual stack • Firmware upgrade • Port mirroring • VLAN mirroring • DHCP (options 12, 66, 67, 82, 129, and 150) • Secure Copy (SCP) • Autoconfiguration with Secure Copy (SCP) file download • Text-editable config files • Smartports • Auto Smartports • Textview CLI • Cloud services • Embedded Probe for Cisco Business Dashboard • Cisco Network Plug and Play (PnP) agent • Localization • Login banner • Other management
