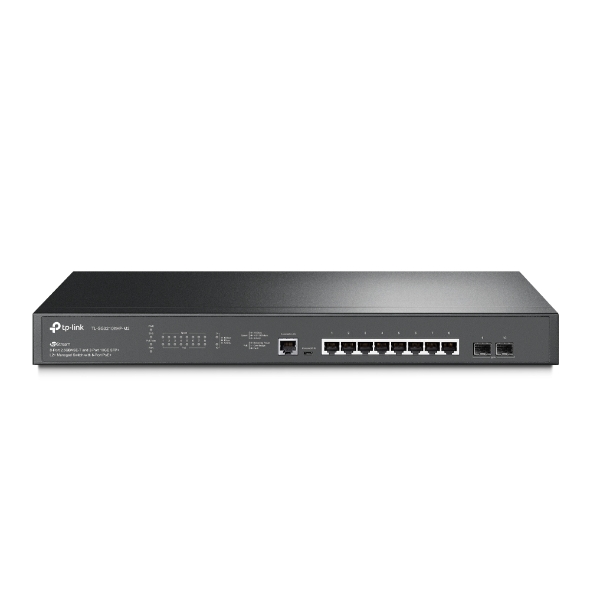

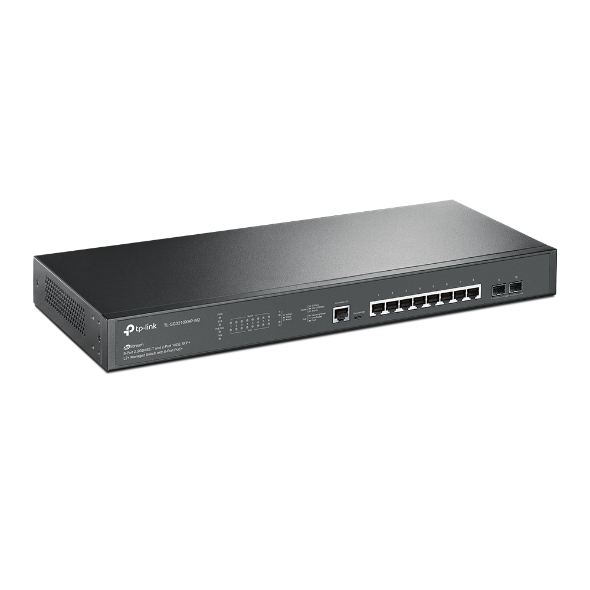

TL-SG3210XHP-M2

Tính năng phần cứng

Giao diện

8× 100/1000/2500 Mbps RJ45 Ports

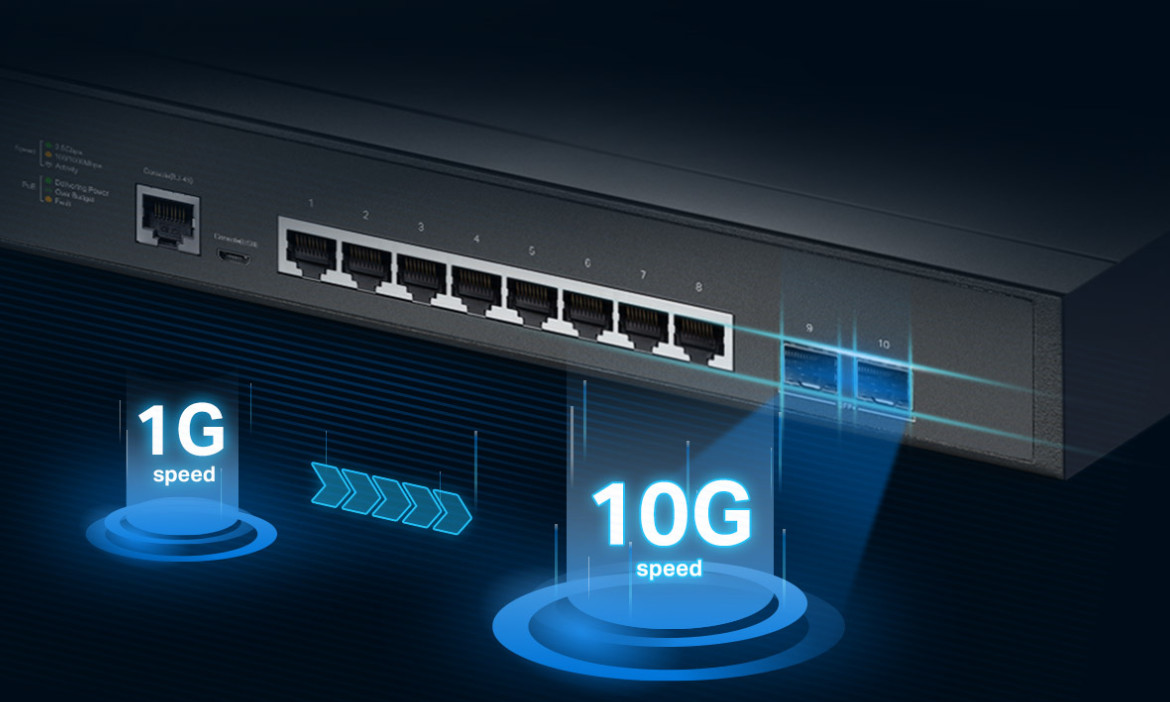

2× 10G SFP+ Slots

1× RJ45 Console Port

1× Micro-USB Console Port

Số lượng quạt

2

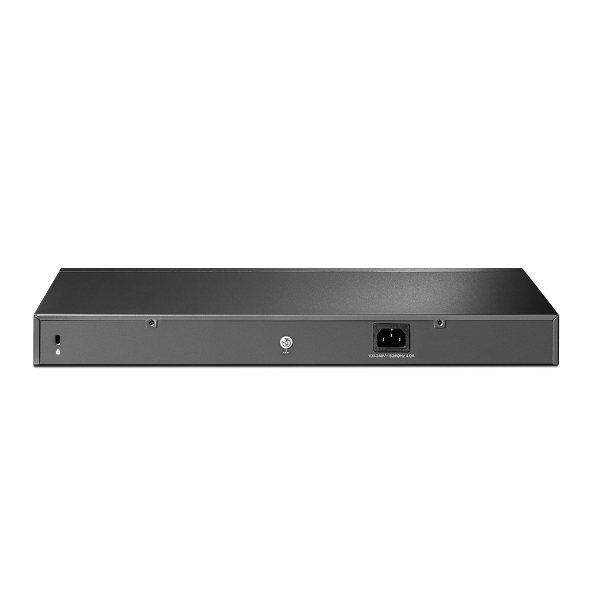

Bộ cấp nguồn

100-240 V AC~50/60 Hz

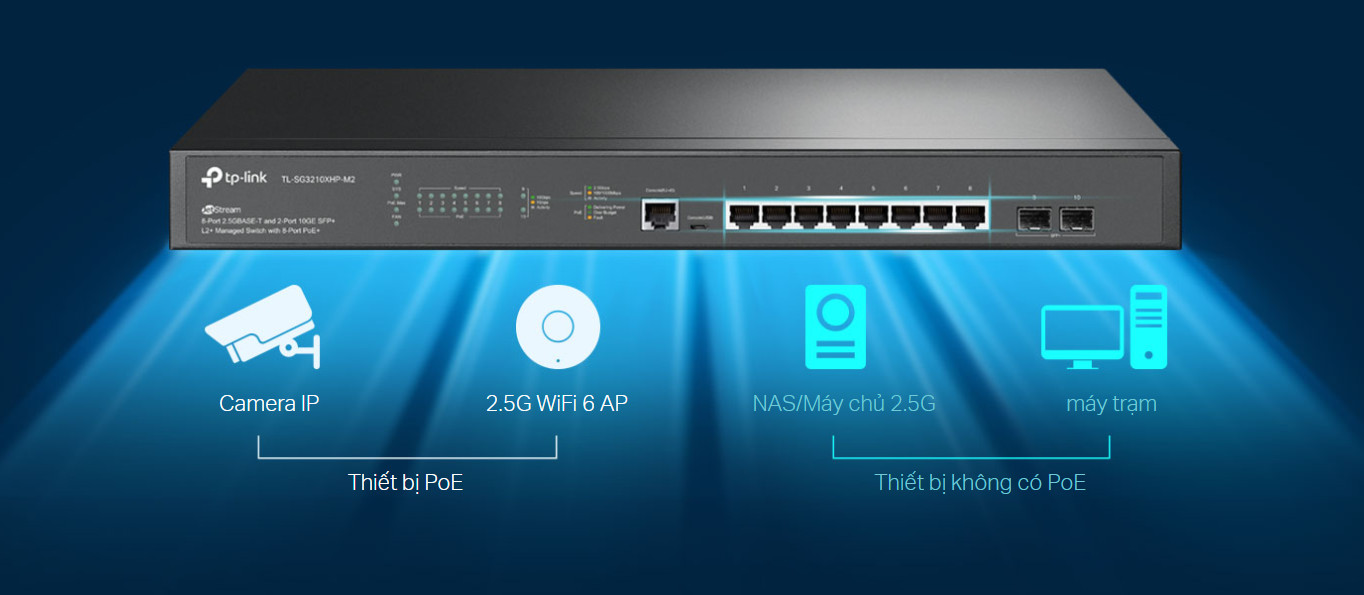

Cổng PoE (RJ45)

Standard: 802.3at/af compliant

PoE+ Ports: 8 Ports

PoE Power Budget: 240 W*

Kích thước ( R x D x C )

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Lắp

Rack Mountable

Tiêu thụ điện tối đa

V1: 291.49 W (110V/60Hz) (with 240 W PD connected); 17.24 W (110V/60Hz) (no PD connected)

V2: 292.0W (110V/60Hz) (with 240 W PD connected)

Max Heat Dissipation

V1: 994.56 BTU/h (110 V/60 Hz) (with 240 W PD connected); 58.82 BTU/h (110 V/60 Hz) (no PD connected)

V2: 996.35 BTU/hr (110 V/60 Hz) (with 240 W PD connected)

Hiệu suất

Switching Capacity

80 Gbps

Tốc độ chuyển gói

59.52 Mpps

Bảng địa chỉ MAC

16 K

Bộ nhớ đệm gói

12 Mbit

Khung Jumbo

9 KB

Tính năng phần mềm

Chất lượng dịch vụ

8 priority queues

802.1p CoS/DSCP priority

Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP+WRR

Bandwidth Control

- Port/Flow based Rating Limiting

Smoother Performance

Action for Flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark

L2 and L2+ Features

Link Aggregation

- static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups, containing 8 ports per group

Spanning Tree Protocol

- 802.1d STP

- 802.1w RSTP

- 802.1s MSTP

- STP Security: TC Protect, BPDU Filter, Root Protect

Loopback Detection

- Port based

- VLAN based

Flow Control

- 802.3x Flow Control

- HOL Blocking Prevention

Mirroring

- Port Mirroring

- CPU Mirroring

- One-to-One

- Many-to-One

- Tx/Rx/Both

L2 Multicast

IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

- IGMP Snooping Querier

- IGMP Authentication

IGMP Authentication

MLD Snooping

- MLD v1/v2 Snooping

- Fast Leave

- MLD Snooping Querier

- Static Group Config

- Limited IP Multicast

MVR

Multicast Filtering: 256 profiles and 16 entries per profile

VLAN

VLAN Group

- Max 4K VLAN Groups

802.1Q Tagged VLAN

MAC VLAN: 10 Entries

Protocol VLAN: Protocol Template 16, Protocol VLAN 16

Private VLAN

GVRP

VLAN VPN (QinQ)

- Port-Based QinQ

- Selective QinQ

Voice VLAN

Access Control List

Time-based ACL

MAC ACL

- Source MAC

- Destination MAC

- VLAN ID

- User Priority

- Ether Type

IP ACL

- Source IP

- Destination IP

- Fragment

- IP Protocol

- TCP Flag

- TCP/UDP Port

- DSCP/IP TOS

- User Priority

Combined ACL

Packet Content ACL

IPv6 ACL

Policy

- Mirroring

- Redirect

- Rate Limit

- QoS Remark

ACL apply to Port/VLAN

Bảo mật

IP-MAC-Port Binding

- 512 Entries

- DHCP Snooping

- ARP Inspection

- IPv4 Source Guard: 100 Entries

IPv6-MAC-Port Binding

- 512 Entries

- DHCPv6 Snooping

- ND Detection

- IPv6 Source Guard: 100 Entries

DoS Defend

Static/Dynamic Port Security

- Up to 64 MAC addresses per port

Broadcast/Multicast/Unicast Storm Control

- kbps/ratio control mode

802.1X

- Port base authentication

- Mac base authentication

- VLAN Assignment

- MAB

- Guest VLAN

- Support Radius authentication andaccountability

AAA (including TACACS+)

Port Isolation

Secure web management through HTTPS with SSLv3/TLS 1.2

Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IP/Port/MAC based access control

IPv6

IPv6 Dual IPv4/IPv6

Multicast Listener Discovery (MLD) Snooping

IPv6 ACL

IPv6 Interface

Static IPv6 Routing

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

IPv6 applications

- DHCPv6 Client

- Ping6

- Tracert6

- Telnet (v6)

- IPv6 SNMP

- IPv6 SSH

- IPv6 SSL

- Http/Https

- IPv6 TFTP

L3 Features

16 IPv4/IPv6 Interfaces

Static Routing

- 48 static routes

Static ARP

- 128 Static Entries

Proxy ARP

Gratuitous ARP

DHCP Server

DHCP Relay

- DHCP Interface Relay

- DHCP VLAN Relay

DHCP L2 Relay

Advanced Features

Automatic Device Discovery

Batch Configuration

Batch Firmware Upgrading

Intelligent Network Monitoring

Abnormal Event Warnings

Unified Configuration

Reboot Schedule

MIBs

MIB II (RFC1213)

Interface MIB (RFC2233)

Ethernet Interface MIB (RFC1643)

Bridge MIB (RFC1493)

P/Q-Bridge MIB (RFC2674)

RMON MIB (RFC2819)

RMON2 MIB (RFC2021)

Radius Accounting Client MIB (RFC2620)

Radius Authentication Client MIB (RFC2618)

Remote Ping, Traceroute MIB (RFC2925)

Support TP-Link private MIB

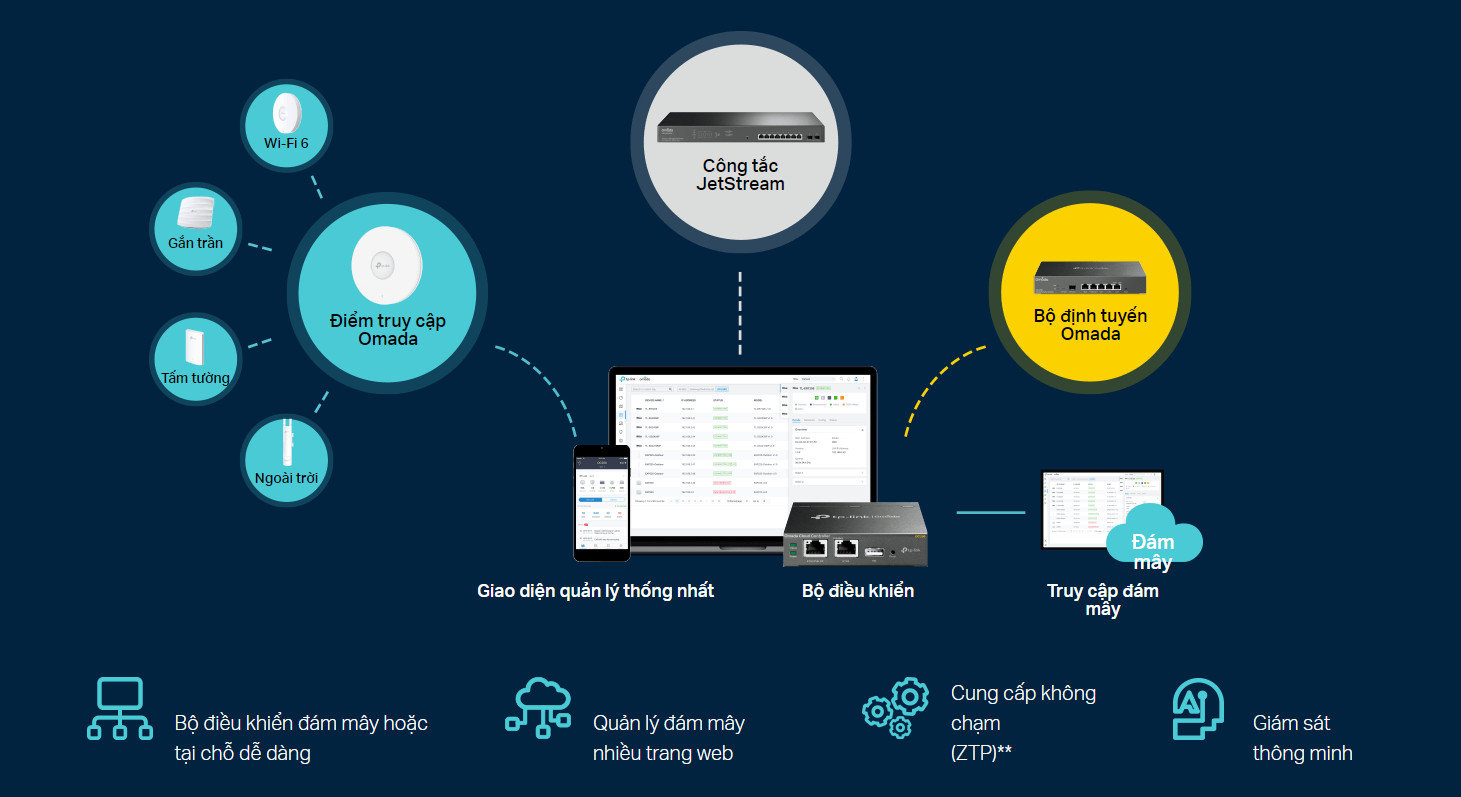

Quản lý

Omada App

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

Omada Cloud-Based Controller

Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Cloud Access

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features

Web-based GUI

Command Line Interface (CLI) through the console port, telnet

SNMP v1/v2c/v3

- Trap/Inform

- RMON (1,2,3,9 groups)

SDM Template

DHCP/BOOTP Client

802.1ab LLDP/LLDP-MED

DHCP AutoInstall

Dual Image, Dual Configuration

CPU Monitoring

Cable Diagnostics

EEE

Password Recovery

SNTP

System Log

Khác

Chứng chỉ

CE, FCC, RoHS

Sản phẩm bao gồm

TL-SG3210XHP-M2 Switch

Power Cord

Quick Installation Guide

Rackmount Kit

Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Môi trường

Operating Temperature: 0–50 ℃ (32–122 ℉);

Storage Temperature: -40–70 ℃ (-40–158 ℉)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing
