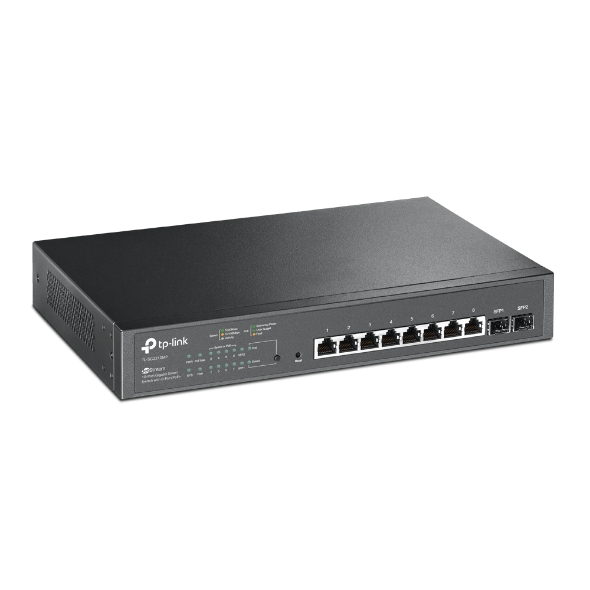

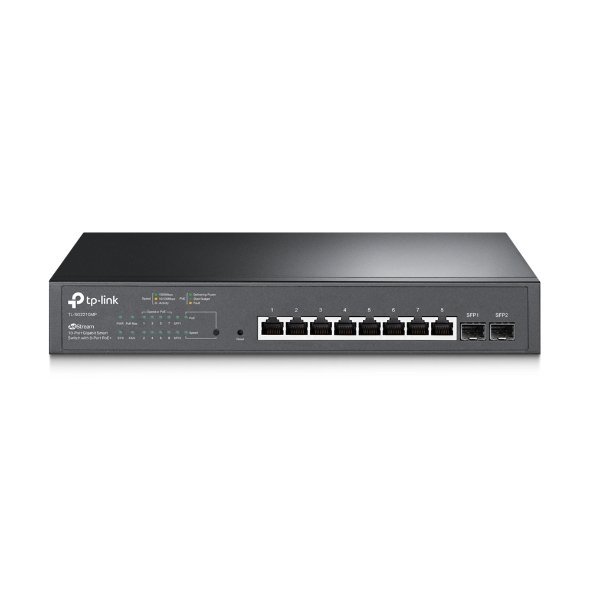

TL-SG2210MP

Tính năng phần cứng

Chuẩn và Giao thức

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Giao diện

8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)

2× 100/1000 Mbps SFP Slots

Mạng Media

10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)

100BASE-FX: MMF, SMF

1000BASE-X: MMF, SMF

Số lượng quạt

1

Khóa bảo mật vật lý

Yes

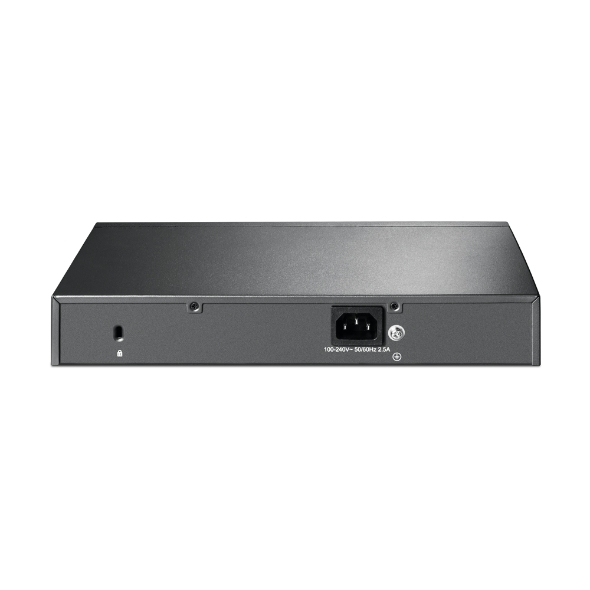

Bộ cấp nguồn

100-240V AC, 50/60Hz

Cổng PoE (RJ45)

Standard: 802.3at/af compliant

PoE+ Ports: 8 Ports

PoE Power Budget: 150 W*

Kích thước ( R x D x C )

11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)

Lắp

Rackmount/Desktop

Tiêu thụ điện tối đa

V1: 173.9 W (110 V/60 Hz) (with 150 W PD connected); 12.2 W (110 V/60 Hz) (no PD connected)

V2: 169.5 W (220 V/50Hz) (with 150 W PD connected)

V3: 175.3 W (110 V/60Hz) (with 150 W PD connected)

V4: 174.2 W (110V/60Hz) (with 150 W PD connected)

Tản nhiệt tối đa

V1: 41.63 BTU/h (with no PD connected); 539.35 BTU/h (with 150 W PD connected)

V2: 578.42 BTU/hr (220V/50 Hz) (with 150 W PDconnected)

V3: 597.8 BTU/hr (110 V/60 Hz) (with 150 W PD connected)

V4: 594.46 BTU/hr (110V/60Hz) (with 150 W PD connected)

Hiệu suất

Switching Capacity

20 Gbps

Tốc độ chuyển gói

14,9 Mpps

Bảng địa chỉ MAC

8K

Bộ nhớ đệm gói

4,1 Mbit

Khung Jumbo

9 KB

Tính năng phần mềm

Chất lượng dịch vụ

802.1p CoS/DSCP priority

8 priority queues

Priority Schedule Mode

- SP (Strict Priority)

- WRR (Weighted Round Robin)

Queue Weight Config

Bandwidth Control

- Port/Flow based Rating Limit

Smoother Performance

Storm Control

- Multiple Control Modes(kbps/ratio)

- Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features

DHCP Relay

- DHCP VLAN Relay

DHCP L2 Relay

Link Aggregation

- Static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups and up to 8 ports

per group

Spanning Tree Protocol

- 802.1D STP

- 802.1w RSTP

- 802.1s MSTP

- STP Security: TC Protect, BPDU Filter/Protect,

Root Protect

Loopback Detection

Flow Control

- 802.3x Flow Control

Mirroring

- Port Mirroring

- CPU Mirroring

- One-to-One

- Many-to-One

- Flow-Based

- Ingress/Egress/Both

Device Link Detect Protocol (DLDP)

802.1ab LLDP/ LLDP-MED

L2 Multicast

511 IPv4, IPv6 shared multicast groups

IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

- IGMP Snooping Querier

- Static Group Config

Multicast VLAN Registration (MVR)

Multicast Filtering

MLD Snooping

- MLD v1/v2 Snooping

- Fast Leave

- MLD Snooping Querier

- Static Group Config

Limited IP Multicast (256 profiles and 16 entries per profile)

Vlan

VLAN Group

- Max. 4K VLAN Groups

802.1Q tag VLAN

MAC VLAN: 12 Entries

Protocol VLAN

GVRP

Voice VLAN

Access Control List

Support up to 230 entries

Time-Range

- Time Slice

- Week Time-Range

- Absolute Time-Range

- Holiday

Time-based ACL

MAC ACL

- Source MAC

- Destination MAC

- VLAN ID

- User Priority

- Ether Type

IP ACL

- Source IP

- Destination IP

- IP Protocol

- TCP Flag

- TCP/UDP Source Port

- TCP/UDP Destination Port

- DSCP/IP TOS

IPv6 ACL

Combined ACL

Rule Operation

- Permit/Deny

Policy Action

- Mirror

- Rate Limit

- Redirect

- QoS Remark

ACL Rules Binding

- Port Binding

- VLAN Binding

Actions for flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark

Bảo mật

AAA

802.1X

- Port based authentication

- MAC (Host) based authentication

- Authentication Method includes PAP/EAP-MD5

- MAB

- Guest VLAN

- Support Radius authentication and

accountability

IP/IPv6-MAC Binding

- 512 Binding Entries

- DHCP Snooping

- DHCPv6 Snooping

- ARP Inspection

- ND Detection

IP Source Guard

- 253 Entries

- Source IP+Source MAC

IPv6 Source Guard

- 183 Entries

- Source IPv6 Address+Source MAC

DoS Defend

Static/Dynamic/Permanent Port Security

- Up to 64 MAC addresses per port

Broadcast/Multicast/Unicast Storm Control

- kbps/ratio control mode

Port Isolation

Secure web management through HTTPS with SSLv3/TLS 1.2

Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IP/Port/MAC based access control

IPv6

IPv6 Static Routing and ACL

IPv6 Dual IPv4/IPv6

IPv6 Interface

Multicast Listener Discovery (MLD) Snooping

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP)

version 6

TCPv6/UDPv6

IPv6 applications

- DHCPv6 Client

- Ping6

- Tracert6

- Telnet(v6)

- IPv6 SNMP

- IPv6 SSH

- IPv6 SSL

- Http/Https

- IPv6 TFTP

Advanced Features

Automatic Device Discovery

Batch Configuration

Batch Firmware Upgrading

Intelligent Network Monitoring

Abnormal Event Warnings

Unified Configuration

Reboot Schedule

MIBs

MIB II (RFC1213)

Bridge MIB (RFC1493)

P/Q-Bridge MIB (RFC2674)

Radius Accounting Client MIB (RFC2620)

Radius Authentication Client MIB (RFC2618)

Remote Ping, Traceroute MIB (RFC2925)

Support TP-Link private MIBs

RMON MIB(RFC1757, rmon 1,2,3,9)

Quản lý

Omada App

Yes, through

Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2)

OC300

OC200

Omada Software Controller

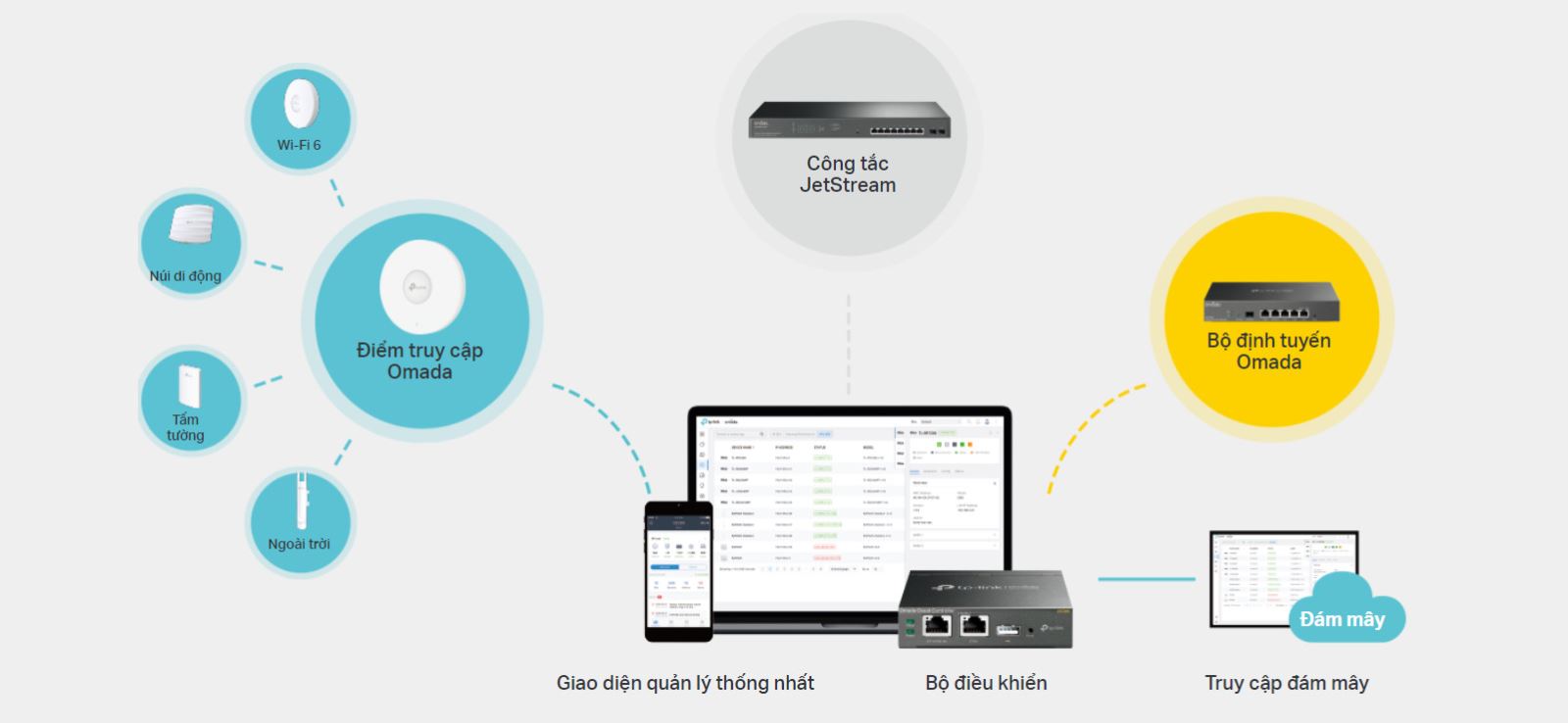

Centralized Management

Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2)

Omada Hardware Controller OC300

Omada Hardware Controller OC200

Omada Software Controller

Cloud Access

Yes, through

Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2)

OC300

OC200

Omada Software Controller

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210MP v1, v3 and above, while is not supported by TL-SG2210MP v2)

Management Features

Web-based GUI

Command Line Interface (CLI) through telnet

SNMPv1/v2c/v3

SNMP Trap/Inform

RMON (1,2,3,9 groups)

SDM Template

DHCP/BOOTP Client

Dual Image, Dual Configuration

CPU Monitoring

Cable Diagnostics

EEE

SNTP

System Log

Khác

Chứng chỉ

CE, FCC, RoHS

Sản phẩm bao gồm

TL-SG2210MP

Power Cord

Installation Guide

Rackmount Kit

Rubber Feet

Yêu cầu hệ thống

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Môi trường

Operating Temperature: 0–50 ℃ (32–122 ℉);

Storage Temperature: -40–70 ℃ (-40–158 ℉)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing
