SG2210P

Mã: SG2210P

Thương hiệu: TP-Link | Tình trạng: Còn hàng

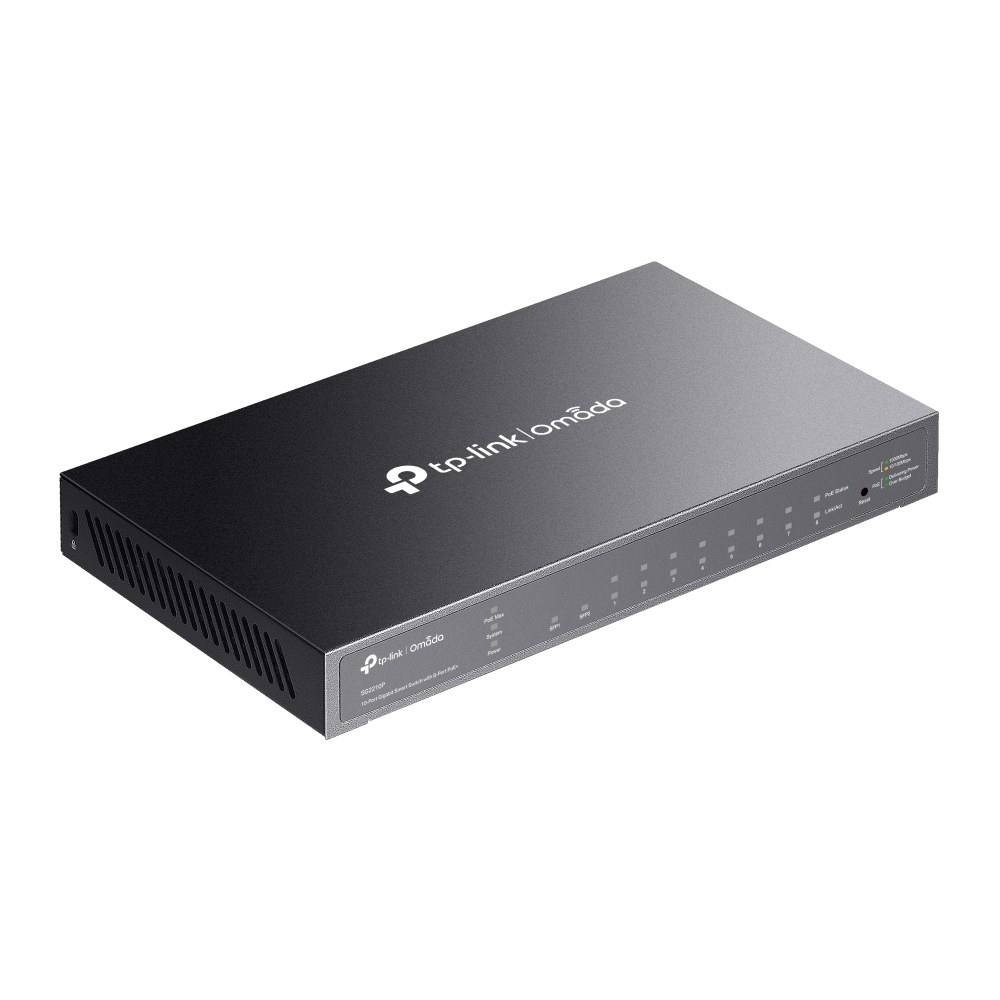

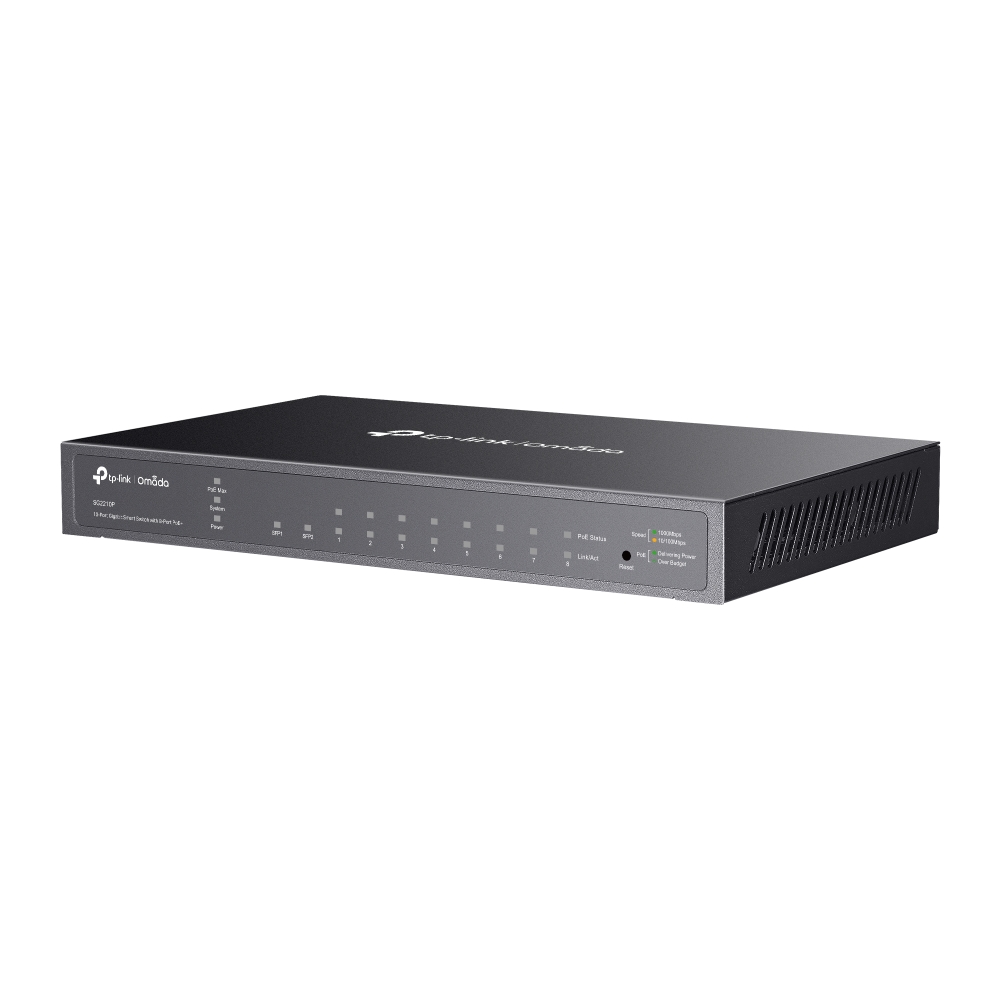

SG2210P

Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

Bộ chuyển mạch thông minh Omada 10 cổng Gigabit với 8 cổng PoE+

8 cổng Gigabit 802.3af/at PoE+ và 2 khe cắm Gigabit SFP
Tổng ngân sách PoE 61 W với công suất đầu ra PoE lên tới 30 W cho mỗi cổng*
Quản lý đám mây tập trung qua web hoặc ứng dụng Omada †
Quản lý độc lập qua web, CLI, SNMP và RMON
Định tuyến tĩnh giúp định tuyến lưu lượng nội bộ để đạt hiệu quả cao hơn
VLAN, ACL, QoS và IGMP Snooping
Thiết kế không quạt cho hoạt động im lặng
Vỏ kim loại bền bỉ và thiết kế để bàn/treo tường

† Các chức năng này yêu cầu sử dụng Omada SDN Controller. Zero-Touch Provisioning yêu cầu sử dụng Omada Cloud-Based Controller. Truy cập Omada Cloud-Based Controller Product List để tìm tất cả các model được Omada Cloud-Based Controller hỗ trợ.

*Tính toán ngân sách PoE dựa trên thử nghiệm trong phòng thí nghiệm. Ngân sách điện PoE thực tế không được đảm bảo và sẽ thay đổi do hạn chế của khách hàng và các yếu tố môi trường.

TÍNH NĂNG PHẦN CỨNG

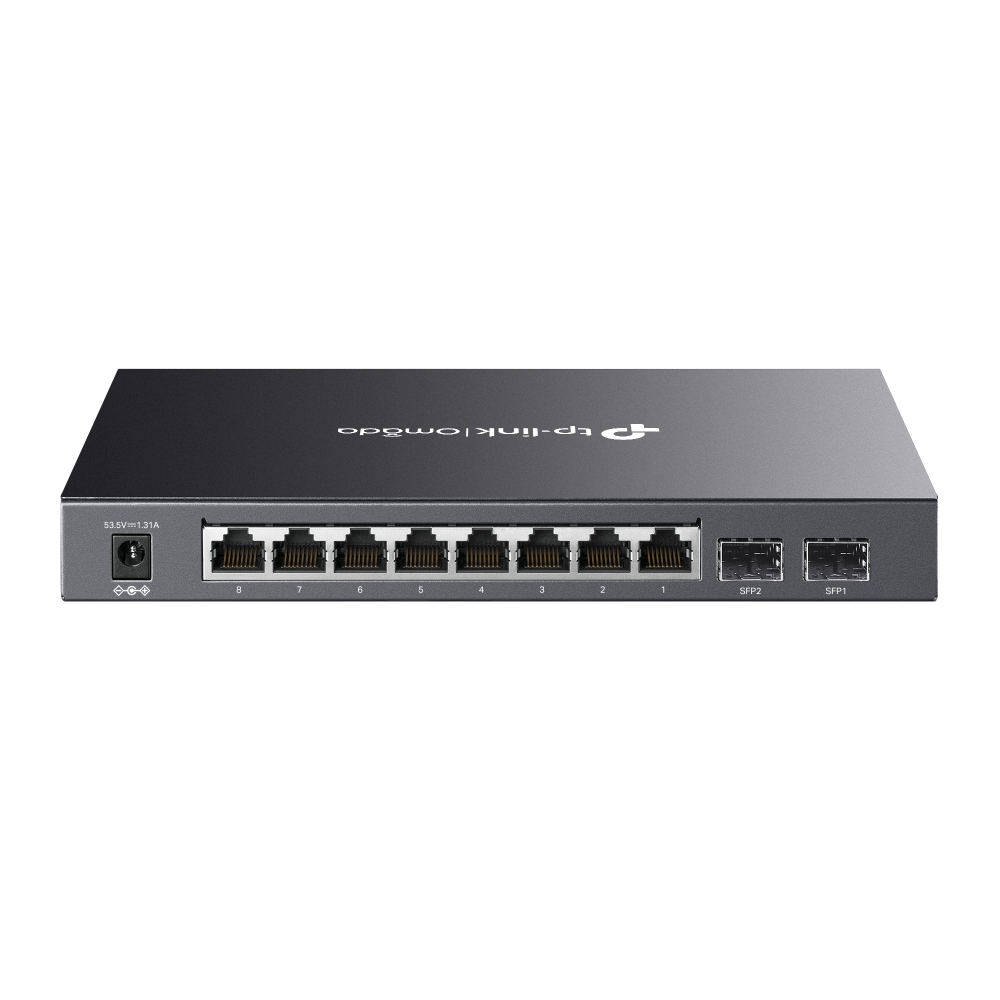

Giao diện	• 8× 10/100/1000Mbps PoE+ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) • 2× 100/1000 Mbps SFP Slots
Số lượng quạt	Fanless
Khóa bảo mật vật lý	√
Bộ cấp nguồn	External Power Adapter (Output: 53.5VDC/1.31A)
Cổng PoE (RJ45)	• Standard: 802.3af/at compliant • PoE Ports: 8 Ports • Power Supply: 61 W*
Kích thước ( R x D x C )	8.2×4.9×1.0 in (209×126×26 mm)

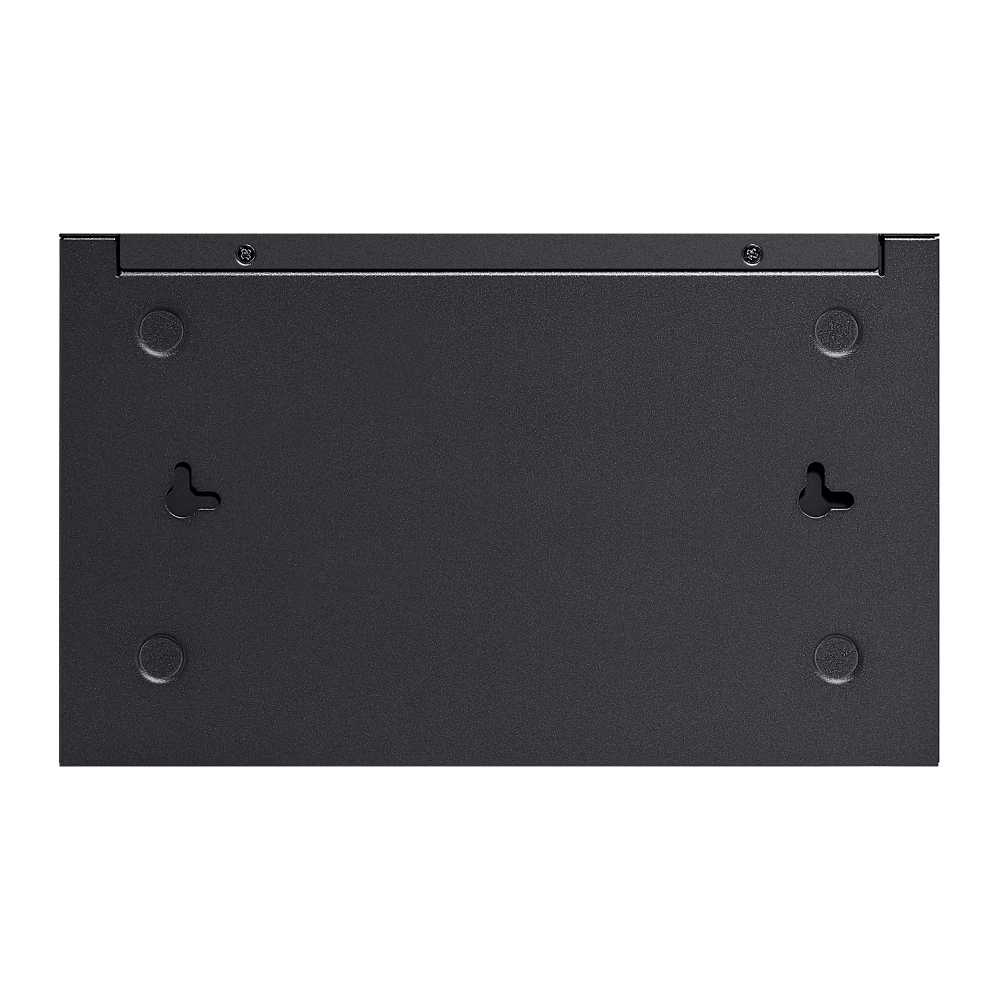

Lắp	Desktop / Wall-Mounting
Tiêu thụ điện tối đa	77.8 W (110 V/60 Hz) (with 61 W PD connected)
Max Heat Dissipation	265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected)

TÍNH NĂNG PHẦN CỨNG

Giao diện

• 8× 10/100/1000Mbps PoE+ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
• 2× 100/1000 Mbps SFP Slots

Số lượng quạt

Fanless

Khóa bảo mật vật lý

√

Bộ cấp nguồn

External Power Adapter (Output: 53.5VDC/1.31A)

Cổng PoE (RJ45)

• Standard: 802.3af/at compliant
• PoE Ports: 8 Ports
• Power Supply: 61 W*

Kích thước ( R x D x C )

8.2×4.9×1.0 in (209×126×26 mm)

Lắp

Desktop / Wall-Mounting

Tiêu thụ điện tối đa

77.8 W (110 V/60 Hz) (with 61 W PD connected)

Max Heat Dissipation

265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected)

HIỆU SUẤT
Switching Capacity	20 Gbps
Tốc độ chuyển gói	14.88 Mpps
Bảng địa chỉ MAC	8K
Bộ nhớ đệm gói	4.1 Mbit
Khung Jumbo	9 KB

HIỆU SUẤT

Switching Capacity

20 Gbps

Tốc độ chuyển gói

14.88 Mpps

Bảng địa chỉ MAC

Bộ nhớ đệm gói

4.1 Mbit

Khung Jumbo

9 KB

TÍNH NĂNG PHẦN MỀM
Chất lượng dịch vụ	• 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features	• 32 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED
L2 Multicast	• 511 IPv4, IPv6 shared multicast groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features	• Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Intelligent Network Monitoring^† • Abnormal Event Warnings^† • Unified Configuration^† • Reboot Schedule^†
VLAN	• VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN
Access Control List	• Support up to 230 entries • Time-based ACL • MAC ACL • IP ACL • IPv6 ACL • Combined ACL • Rule Operation: Permit/Deny • Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding
Bảo mật	• IP-MAC-Port Binding • AAA • 802.1X - Port-based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
IPv6	• IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP
MIBs	• MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9)

TÍNH NĂNG PHẦN MỀM

Chất lượng dịch vụ

• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features

• 32 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED

L2 Multicast

• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• Limited IP Multicast (256 profiles and 16 entries per profile)

Advanced Features

• Automatic Device Discovery^†
• Batch Configuration^†
• Batch Firmware Upgrading^†
• Intelligent Network Monitoring^†
• Abnormal Event Warnings^†
• Unified Configuration^†
• Reboot Schedule^†

VLAN

• VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN

Access Control List

• Support up to 230 entries
• Time-based ACL
• MAC ACL
• IP ACL
• IPv6 ACL
• Combined ACL
• Rule Operation: Permit/Deny
• Policy Action
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding

Bảo mật

• IP-MAC-Port Binding
• AAA
• 802.1X
- Port-based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control

IPv6

• IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP

MIBs

• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)

QUẢN LÝ
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log

QUẢN LÝ

Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Cloud Access

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

Management Features

• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

KHÁC
Chứng chỉ	CE, FCC, RoHS
Sản phẩm bao gồm	• SG2210P • Power Adapter • Installation Guide • Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Môi trường	• Operating Temperature: 0℃~40℃ (32℉~104℉); • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

KHÁC

Chứng chỉ

CE, FCC, RoHS

Sản phẩm bao gồm

• SG2210P
• Power Adapter
• Installation Guide
• Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Môi trường

• Operating Temperature: 0℃~40℃ (32℉~104℉);
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
