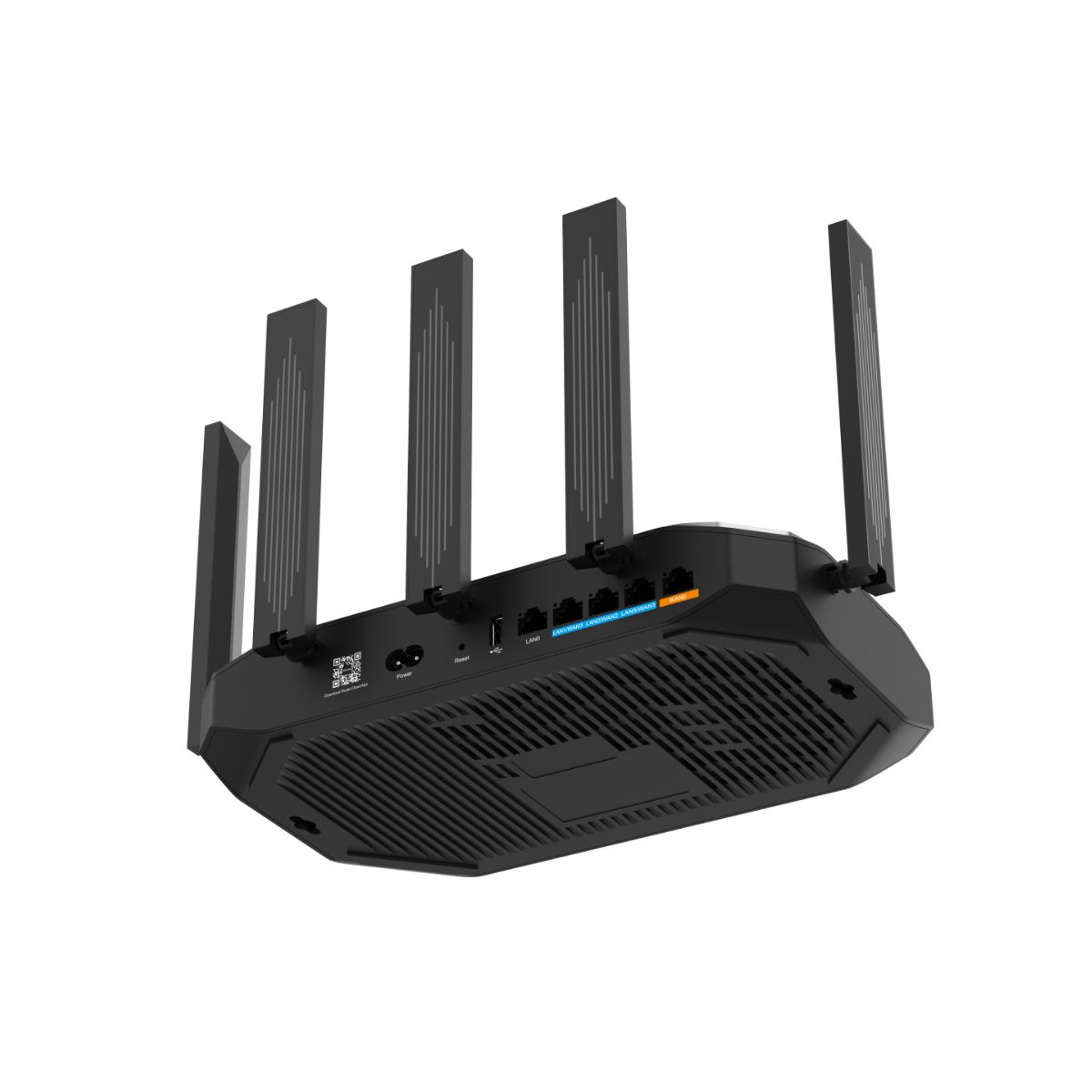

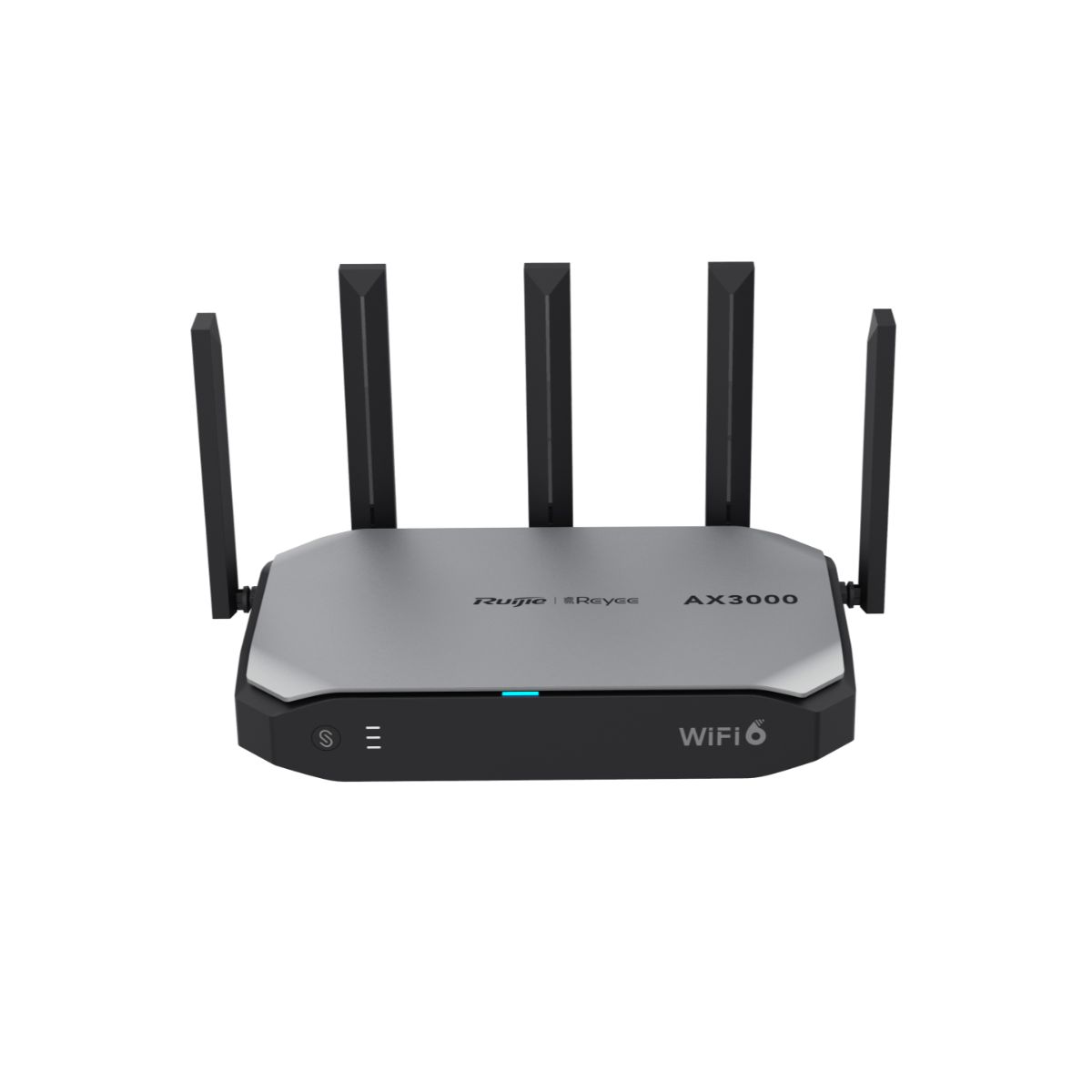

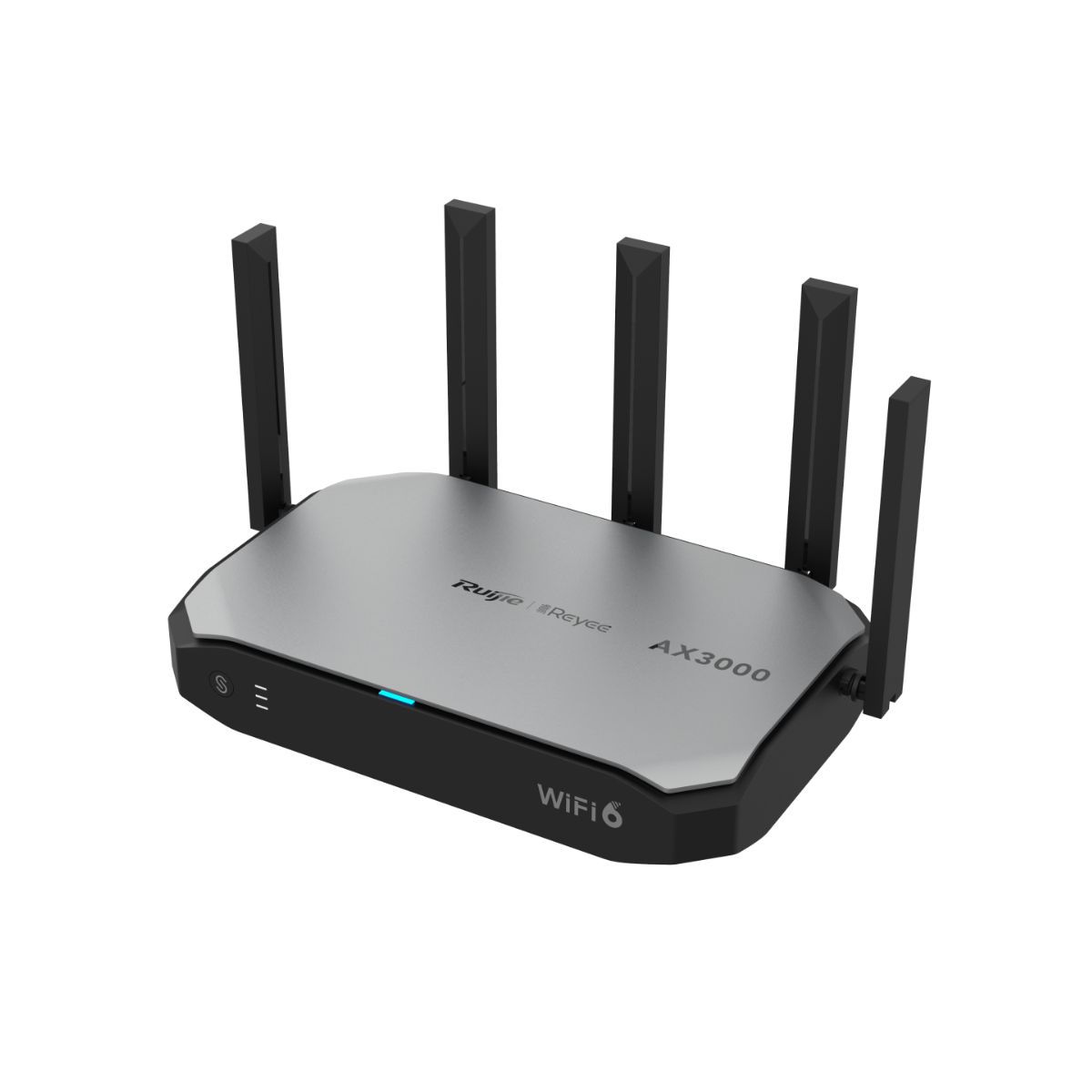

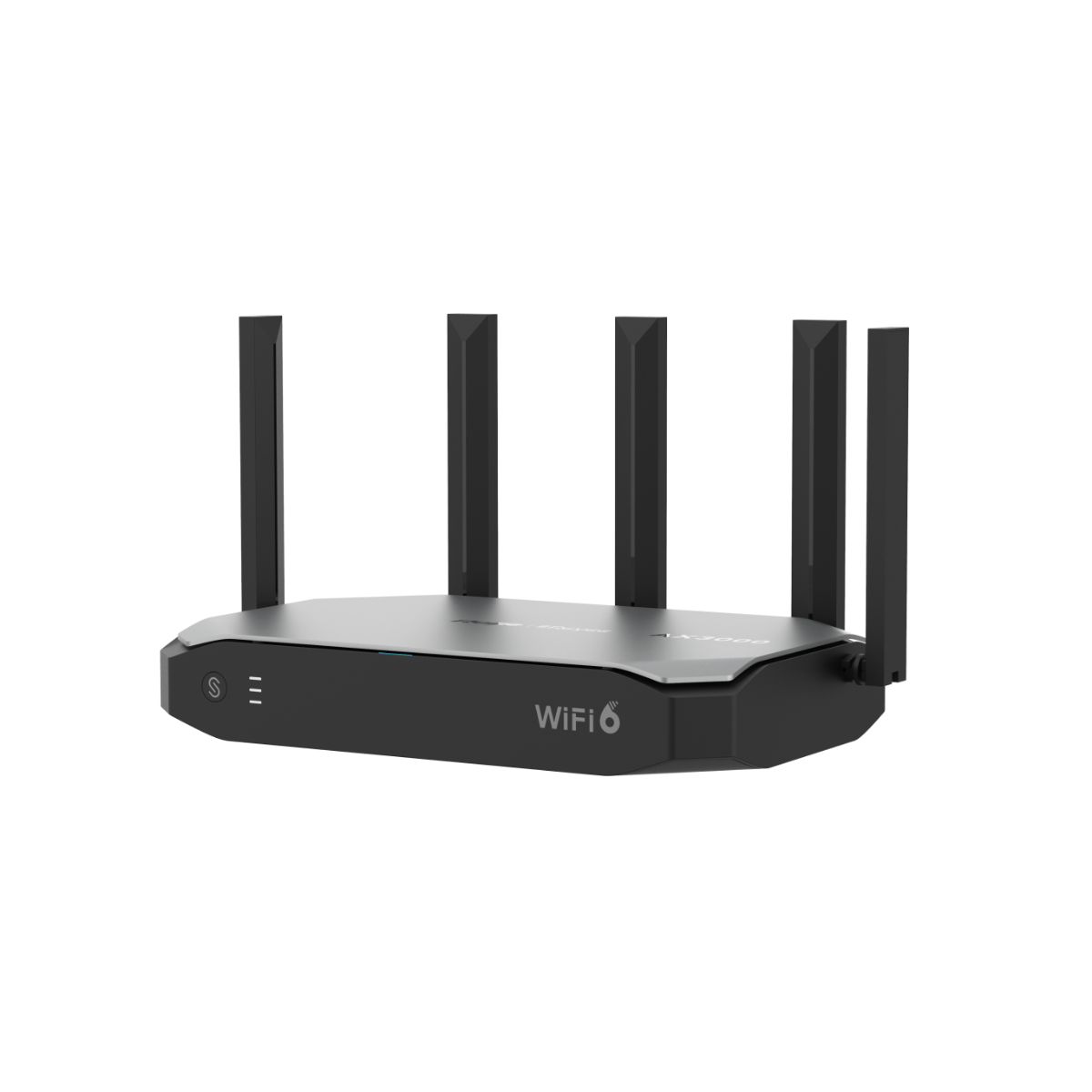

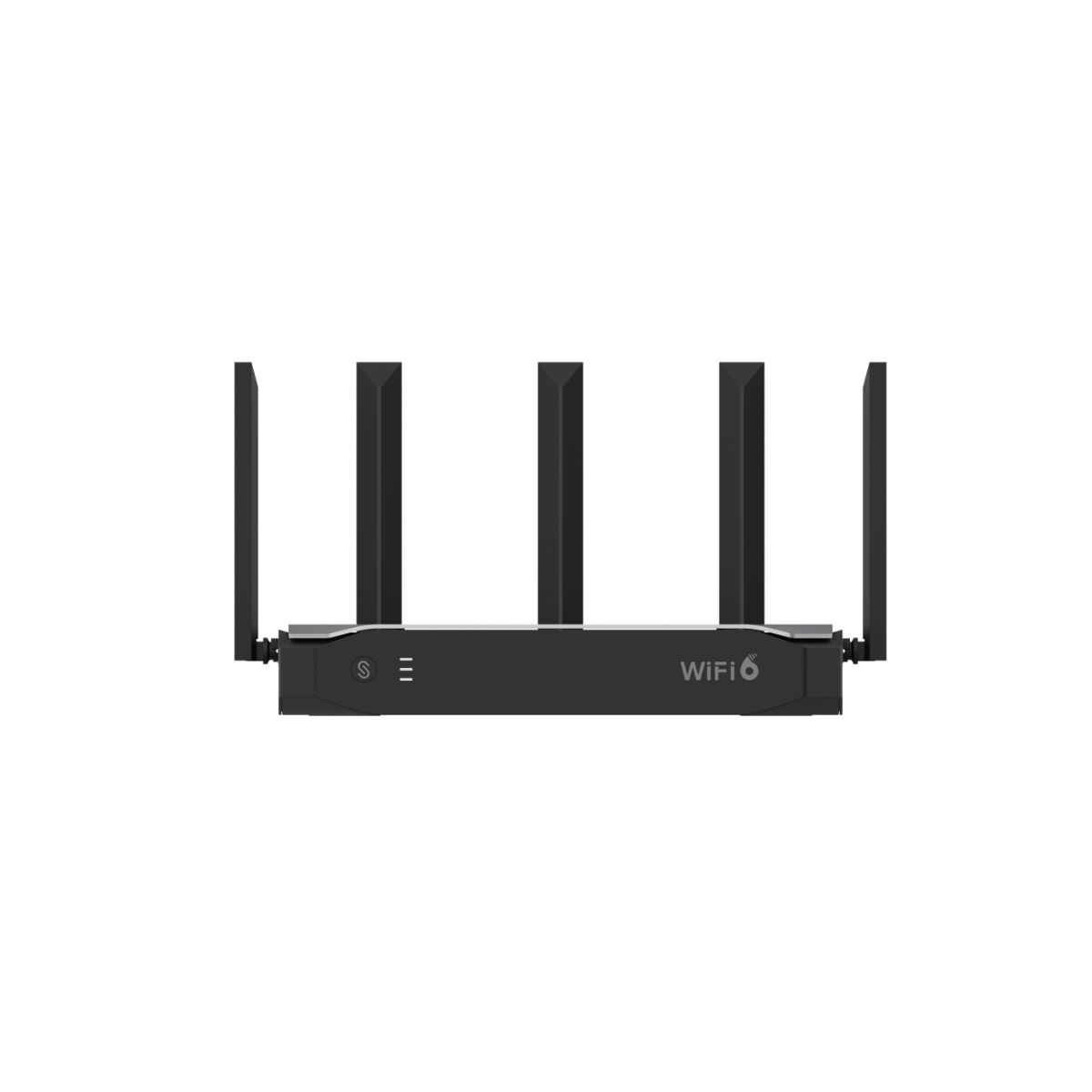

Router cân bằng tải Wifi 6 Ruijie Reyee RG-EG105GW-X AX3000

Mã: RG-EG105GW-X

Thương hiệu: Ruijie | Tình trạng: Còn hàng

RG-EG105GW-X

(5) Cổng Gigabit Ethernet 1G, hỗ trợ cân bằng tải 4 WAN

Thiết bị Router Smart Gateway Wifi 6 Reyee RG-EG105GW-X 1 180 user, 3 cổng LAN/WAN 1000M BASE-T, 1 cổng LAN 1000M BASE-T, 1.2Gbps

Dòng Wifi 6

Bảo hành: 3 năm

Tính năng nổi bật

Wifi 6 tốc độ 2976Mbps chuẩn 802.11AX và tần số 160MHz, với sự kết hợp của 2 kỹ thuật OFDMA và 1024QAM.
Cân bằng tải 4 wan, chịu tải 180 user.
Mesh không dây với công nghệ Reyee mesh.
VPN: IPSec, OpenVPN, L2TP, PPTP, etc.
Multi VLan.
Quản lý từ xa qua Ruijie Cloud miễn phí trọn đời.

Thiết bị Router Smart Gateway Wifi 6 Reyee RG-EG105GW-X là sản phẩm router mới mang đến công nghệ Wi-Fi 6 tiên tiến, thiết kế nhỏ gọn qua chất liệu nhựa ABS cao cấp mang đến độ bền và an toàn trong quá trình sử dụng. Với sự hỗ trợ công nghệ Wi-Fi 6 mới nhất, Router Wifi 6 Reyee RG-EG105GW-X tăng tốc độ truyền dữ liệu 2976 Mbps và băng thông 1.2Gbps, giúp kết nối nhiều thiết bị và đảm bảo ổn định, đơn giản hóa quản lý cấu hình mạng nhờ tích hợp router và access point, đồng thời còn được bảo mật cao cấp roaming Layer 2 - Layer 3 để đem lại kết nối ổn định khi di chuyển.

Thiết bị Router Smart Gateway Wifi 6 Reyee RG-EG105GW-X chính hãng

Thiết bị Router Smart Gateway Wifi 6 Reyee RG-EG105GW-X đạt tốc độ lên đến 2.976Gbps

Thiết bị Router Smart Gateway Wifi 6 Reyee RG-EG105GW-X kết nối chỉ với 1 nút điều khiển

Quản lý từ xa trên Ruijie Cloud

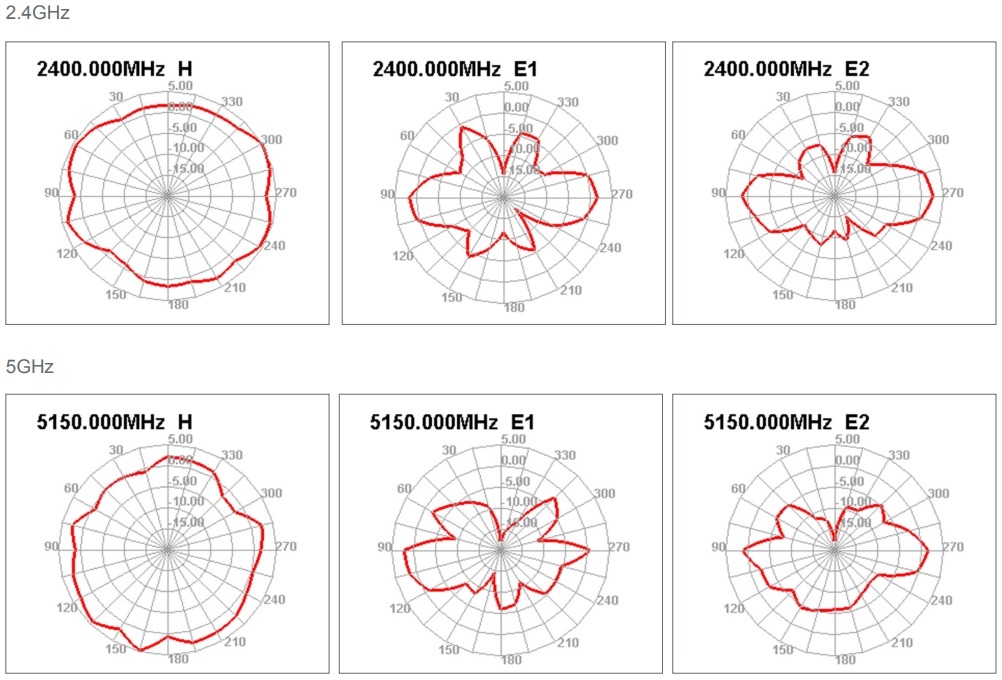

Sơ đồ dải Ang-ten

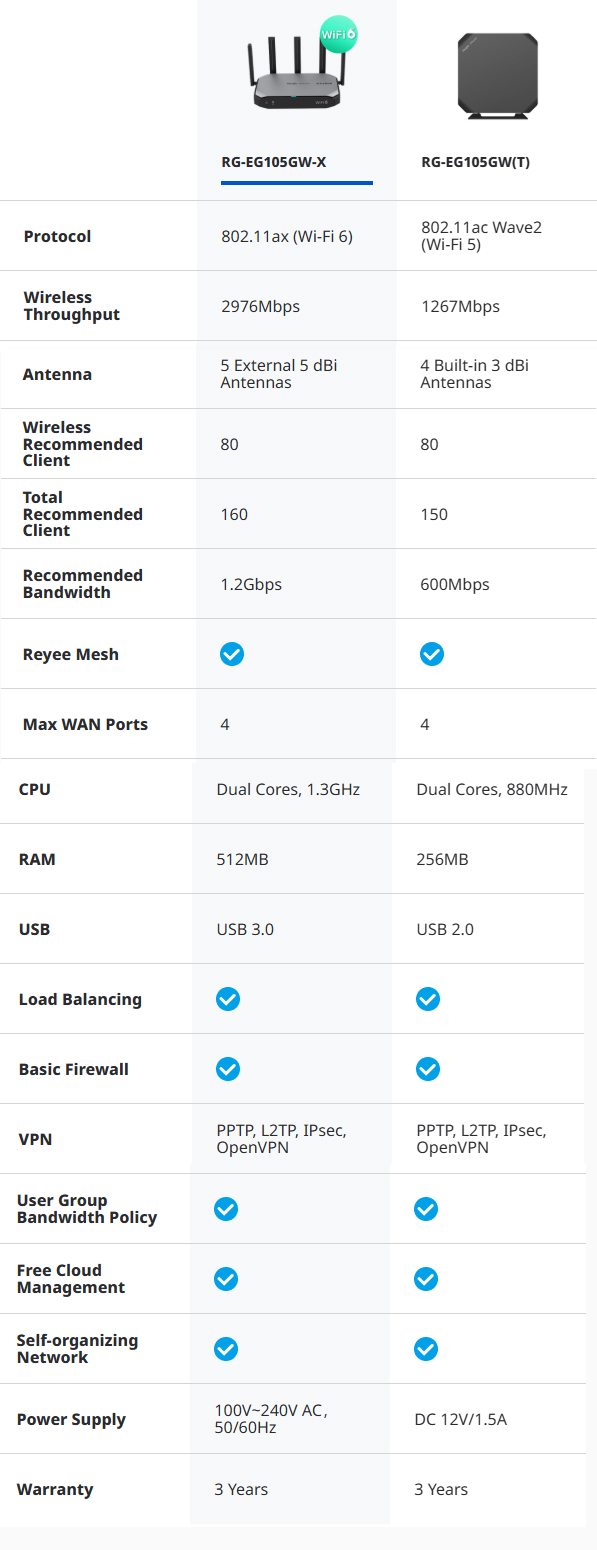

So sánh

Sản phẩm liên quan

Hardware Specifications
Hardware Basic
Service Ports	5 x 10/100/1000 Base-T (1 fixed WAN, 1 fixed LAN, 3 LAN/WAN switchable) 1 x USB 3.0
SDRAM/RAM	512 MB
Flash Memory	128 MB
Radio Design	2.4GHz, 2×2, MU-MIMO 5GHz, 2×2, MU-MIMO
Standard & Protoco	Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 5 (IEEE 802.11ac Wave 2) Wi-Fi 4 (IEEE 802.11n) IEEE 802.11a IEEE 802.11b/g
Operation Frequency Bands	802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz country-specific restrictions apply Egypt: 802.11b/g/n: 2.4 GHz ~ 2.4835 GHz 802.11a/n/ac: 5.150 GHz ~ 5.350 GHz
Antenna	5 External Antennas (2.4 GHz: 5 dBi, 5 GHz: 5 dBi)
Wireless Data Rate	2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps
Max Transmit Power	5725 MHz to 5850 MHz: 33 dBm (EIRP) 5150 MHz to 5350 MHz: 23 dBm (EIRP) 2400 MHz to 2483.5 MHz: 20 dBm (EIRP) Myamar: 2400 MHz~2483.5 MHz ≤ 20 dBm 5150 MHz~5350 MHz ≤ 23 dBm 5470 MHz~5850 MHz ≤ 25 dBm Thailand: 2400 MHz~2483.5 MHz ≤ 20 dBm 5150 MHz~5350 MHz ≤ 23 dBm 5470 MHz~5725 MHz ≤ 25 dBm 5725 MHz~5850 MHz ≤ 30 dBm Egypt: 2400 MHz~2483.5 MHz ≤ 20 dBm (EIRP) 5150 MHz~5350 MHz ≤ 20 dBm (EIRP)
Modulation	OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16QAM@24 Mbps, 64QAM@48/54 Mbps DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and CCK@5.5/11 Mbps MIMOOFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and1024QAM OFDMA
Recommended maximum Clients	Recommended total clients: 180
Recommended maximum Clients	Recommended wireless clients: 80
Recommended ISP Bandwidth	1.2 Gbps
Local Power Supply	100V~240V AC, 50/ 60Hz
Max Power Consumption	20W
Physical Parameters
Dimensions (W x D x H)	283 mm × 172 mm × 46 mm (11.14 in. × 6.77 in. × 1.81 in.) Note: The value (46 mm/1.81 in.) only indicates the height of the main unit, excluding that of the antenna
Weight	≤ 2 kg (4.41 lbs)
Operating Temperature	0ºC to 40ºC (32°F to 104°F)
Storage Temperature	–40ºC to 70ºC (–40°F to 158°F)
Operating Humidity	5% RH to 95% RH (non-condensing)
Storage Humidity	5% RH to 95% RH (non-condensing)
Software Specifications
Basic Features
Internet Access Mode	PPPoE Client DHCP Client Static IP
Access Mode Auto-Identification	√
WAN IP Address Conflict Avoidance	√
PPPoE Account and Password Learned from Other Routers	√
VLAN	8
IPv6	√
Network Management
IPTV	√
AC Mode	√
Behavior Management	App Block (Time/IP-based Policy) Website Filtering
Application Identification	Identify 100+ Applications, including Office, IM, Web Page, Online Shopping, Online Gaming, P2P Download and Popular Videos
Application Priority	√

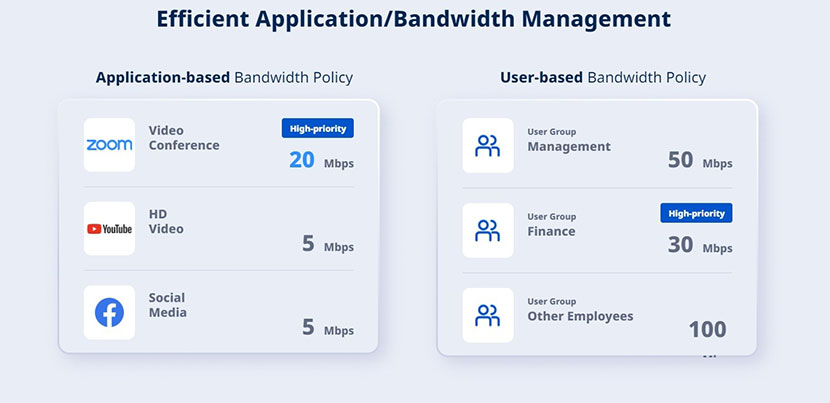

Flow Control	Smart Flow Control Custom flow Control Policies IP-based Automatic Bandwidth Assignment
Traffic Audit	Real-time Traffic Audit
Fault Diagnosis	√
Marketing Authentication	WiFiDog (SMS Authentication and One-click Authentication)
Local Authentication	Portal Authentication Password Authentication QR Code Authentication
VPN
L2TP VPN	√
PPTP VPN	√
IPsec VPN	√
OpenVPN	√
PPTP&L2TP&OpenVPN Accounts	100
IPsec VPN Performance	28 Mbps
L2TP VPN Performance	190 Mbps
OpenVPN Performance	20 Mbps
IPsec VPN Tunnels	8
OpenVPN Tunnels	16
L2TP VPN Tunnels	8
Routing
Static Routing	√
RIP/RIPng	√
Policy-based Routing	√
Active/Standby Switchover	√
WAN Port Load Balancing	√
IP-based Load Balancing	√
Flow-based Load Balancing	√
Load Balancing Based on Weights of Member Interfaces	√
ISP Routing	√
Networks
PPPoE Client	√
PPPoE Server	√
DHCP Server	√
DNS Client	√
DNS Server	√
DNS Proxy	√
NTP Client	√
DDNS	Oray DDNS DynDns NO-IP Ruijie DDNS
NAT	√
NAPT	√
NAT ALG	√
Port Mapping	√
UPnP	√
Ruijie Cloud	√
ACL
ACL	√
Time-based Extended ACL	√
Security
Malicious Attack Prevention	√
ARP Binding	√
Port Scan Attack Prevention	√
Fragmentation Attack Prevention	√
DoS Teardrop Attack Prevention	√
Malformed Packet Attack Prevention	√
DoS LAND Attack Prevention	√
Smurf Attack Prevention	√
SYN Flood Attack Prevention	√
WLAN
Max Managed APs	Gateway Mode: 64 (Bypass mode is not supported.)
AP Management	Multi-SSID configuration SSID hiding, channel configuration power configuration AP wired port configuration AP online upgrade STA limit STA blacklist/whitelist
Roaming	Local roaming layer 2 roaming layer 3 roaming STA roaming track
Service and Support
Cloud Management	√
App Management	√
App Upgrade	√
App Restart	√
Scheduled Restart	√
Local Upgrade	√
Online Upgrade	√
Configuration Backup	√
Factory Settings	√

Hardware Specifications
Hardware Basic
Service Ports	5 x 10/100/1000 Base-T (1 fixed WAN, 1 fixed LAN, 3 LAN/WAN switchable) 1 x USB 3.0
SDRAM/RAM	512 MB
Flash Memory	128 MB
Radio Design	2.4GHz, 2×2, MU-MIMO 5GHz, 2×2, MU-MIMO
Standard & Protoco	Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 5 (IEEE 802.11ac Wave 2) Wi-Fi 4 (IEEE 802.11n) IEEE 802.11a IEEE 802.11b/g
Operation Frequency Bands	802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz country-specific restrictions apply Egypt: 802.11b/g/n: 2.4 GHz ~ 2.4835 GHz 802.11a/n/ac: 5.150 GHz ~ 5.350 GHz
Antenna	5 External Antennas (2.4 GHz: 5 dBi, 5 GHz: 5 dBi)
Wireless Data Rate	2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps
Max Transmit Power	5725 MHz to 5850 MHz: 33 dBm (EIRP) 5150 MHz to 5350 MHz: 23 dBm (EIRP) 2400 MHz to 2483.5 MHz: 20 dBm (EIRP) Myamar: 2400 MHz~2483.5 MHz ≤ 20 dBm 5150 MHz~5350 MHz ≤ 23 dBm 5470 MHz~5850 MHz ≤ 25 dBm Thailand: 2400 MHz~2483.5 MHz ≤ 20 dBm 5150 MHz~5350 MHz ≤ 23 dBm 5470 MHz~5725 MHz ≤ 25 dBm 5725 MHz~5850 MHz ≤ 30 dBm Egypt: 2400 MHz~2483.5 MHz ≤ 20 dBm (EIRP) 5150 MHz~5350 MHz ≤ 20 dBm (EIRP)
Modulation	OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16QAM@24 Mbps, 64QAM@48/54 Mbps DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and CCK@5.5/11 Mbps MIMOOFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and1024QAM OFDMA
Recommended maximum Clients	Recommended total clients: 180
Recommended maximum Clients	Recommended wireless clients: 80
Recommended ISP Bandwidth	1.2 Gbps
Local Power Supply	100V~240V AC, 50/ 60Hz
Max Power Consumption	20W
Physical Parameters
Dimensions (W x D x H)	283 mm × 172 mm × 46 mm (11.14 in. × 6.77 in. × 1.81 in.) Note: The value (46 mm/1.81 in.) only indicates the height of the main unit, excluding that of the antenna
Weight	≤ 2 kg (4.41 lbs)
Operating Temperature	0ºC to 40ºC (32°F to 104°F)
Storage Temperature	–40ºC to 70ºC (–40°F to 158°F)
Operating Humidity	5% RH to 95% RH (non-condensing)
Storage Humidity	5% RH to 95% RH (non-condensing)
Software Specifications
Basic Features
Internet Access Mode	PPPoE Client DHCP Client Static IP
Access Mode Auto-Identification	√
WAN IP Address Conflict Avoidance	√
PPPoE Account and Password Learned from Other Routers	√
VLAN	8
IPv6	√
Network Management
IPTV	√
AC Mode	√
Behavior Management	App Block (Time/IP-based Policy) Website Filtering
Application Identification	Identify 100+ Applications, including Office, IM, Web Page, Online Shopping, Online Gaming, P2P Download and Popular Videos
Application Priority	√
Flow Control	Smart Flow Control Custom flow Control Policies IP-based Automatic Bandwidth Assignment
Traffic Audit	Real-time Traffic Audit
Fault Diagnosis	√
Marketing Authentication	WiFiDog (SMS Authentication and One-click Authentication)
Local Authentication	Portal Authentication Password Authentication QR Code Authentication
VPN
L2TP VPN	√
PPTP VPN	√
IPsec VPN	√
OpenVPN	√
PPTP&L2TP&OpenVPN Accounts	100
IPsec VPN Performance	28 Mbps
L2TP VPN Performance	190 Mbps
OpenVPN Performance	20 Mbps
IPsec VPN Tunnels	8
OpenVPN Tunnels	16
L2TP VPN Tunnels	8
Routing
Static Routing	√
RIP/RIPng	√
Policy-based Routing	√
Active/Standby Switchover	√
WAN Port Load Balancing	√
IP-based Load Balancing	√
Flow-based Load Balancing	√
Load Balancing Based on Weights of Member Interfaces	√
ISP Routing	√
Networks
PPPoE Client	√
PPPoE Server	√
DHCP Server	√
DNS Client	√
DNS Server	√
DNS Proxy	√
NTP Client	√
DDNS	Oray DDNS DynDns NO-IP Ruijie DDNS
NAT	√
NAPT	√
NAT ALG	√
Port Mapping	√
UPnP	√
Ruijie Cloud	√
ACL
ACL	√
Time-based Extended ACL	√
Security
Malicious Attack Prevention	√
ARP Binding	√
Port Scan Attack Prevention	√
Fragmentation Attack Prevention	√
DoS Teardrop Attack Prevention	√
Malformed Packet Attack Prevention	√
DoS LAND Attack Prevention	√
Smurf Attack Prevention	√
SYN Flood Attack Prevention	√
WLAN
Max Managed APs	Gateway Mode: 64 (Bypass mode is not supported.)
AP Management	Multi-SSID configuration SSID hiding, channel configuration power configuration AP wired port configuration AP online upgrade STA limit STA blacklist/whitelist
Roaming	Local roaming layer 2 roaming layer 3 roaming STA roaming track
Service and Support
Cloud Management	√
App Management	√
App Upgrade	√
App Restart	√
Scheduled Restart	√
Local Upgrade	√
Online Upgrade	√
Configuration Backup	√
Factory Settings	√
