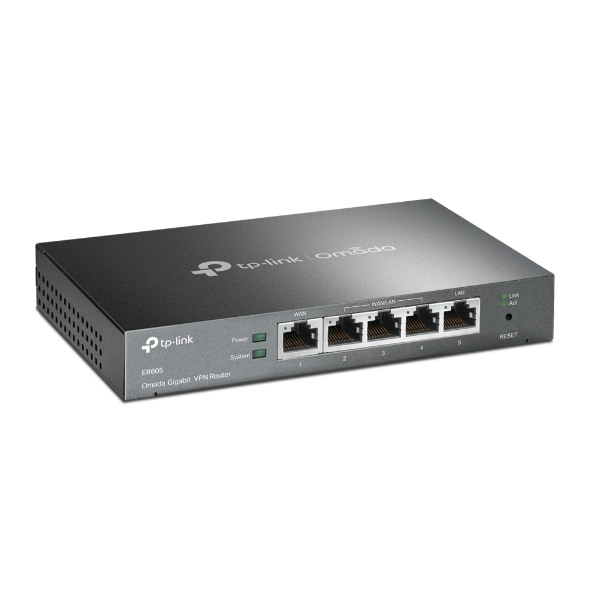

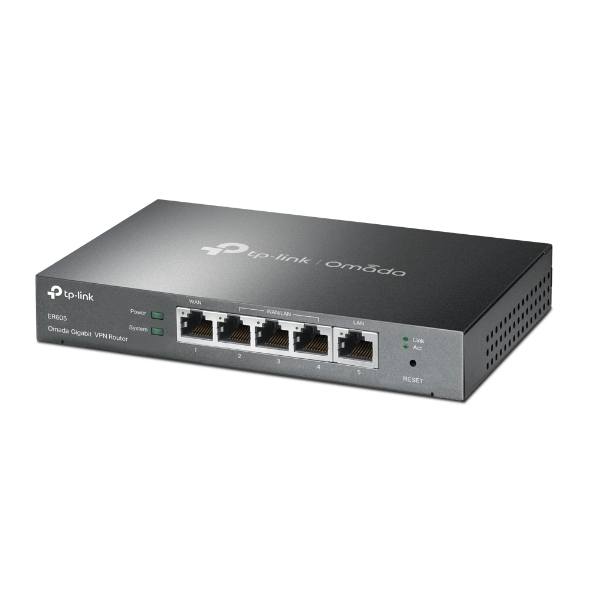

Router VPN TP-Link Omada Gigabit ER605

Tính năng phần cứng

Chuẩn và Giao thức

IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q

TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

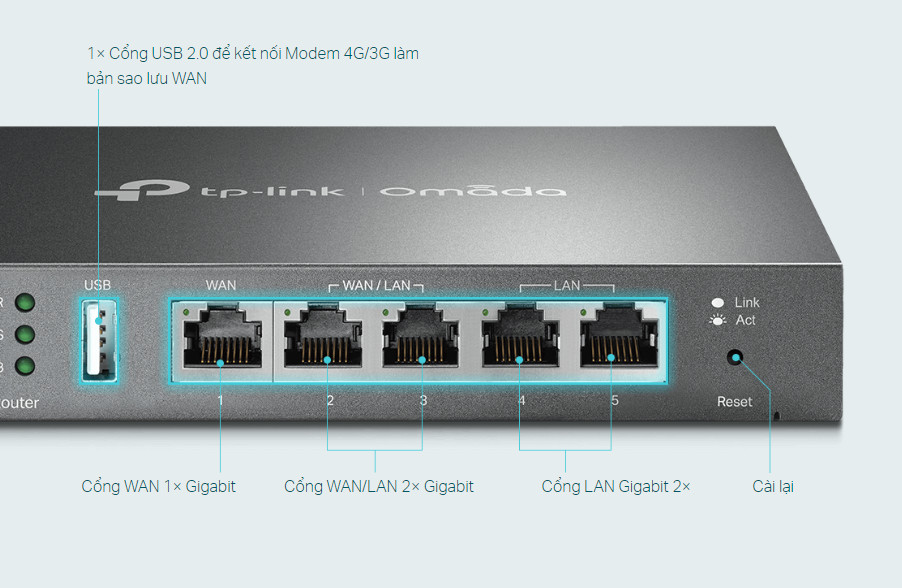

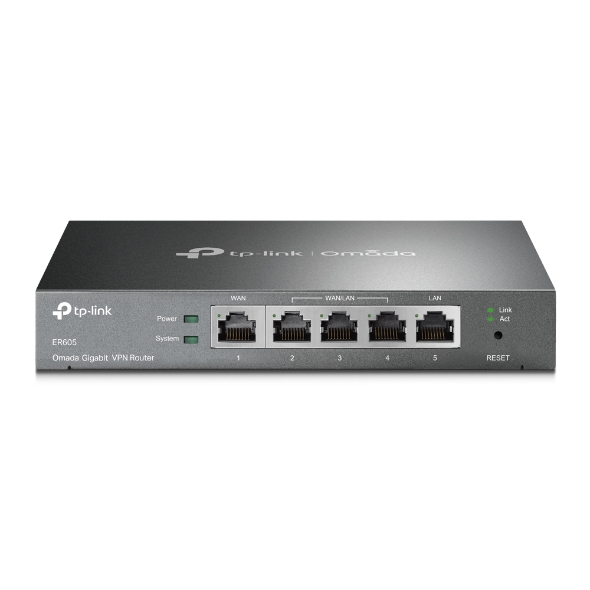

Giao diện

1 Fixed Gigabit WAN Port

2 Fixed Gigabit LAN Ports

2 Changeable Gigabit WAN/LAN Ports

1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup)

Mạng Media

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Số lượng quạt

Fanless

Nút

Reset Button

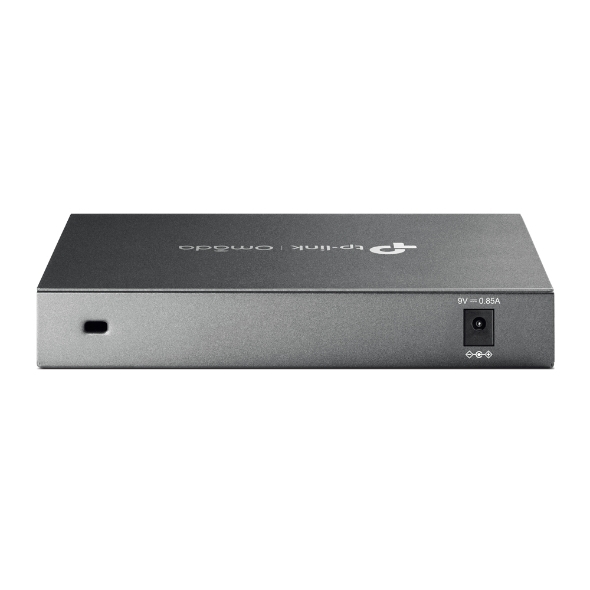

Bộ cấp nguồn

External 12V/1A DC Adapter

PoE Budget

-

Flash

128 MB NAND

DRAM

256 MB DDR

LED

PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB

Kích thước ( R x D x C )

6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)

Bảo vệ

4 kV surge protection

Enclosure

Steel

Lắp

Desktop/Wall-mount

Tiêu thụ điện tối đa

7.94 W

Hiệu suất

Concurrent Session

150,000

New Sessions /Second

2,600

NAT (Static IP)

Upload: 945.77 Mbps

Download: 945.56 Mbps

Bi-Directional: 1808.29 Mbps

NAT(DHCP)

Upload: 945.93 Mbps

Download: 945.43 Mbps

Bi-Directional: 1808.11 Mbps

NAT(PPPoE)

Upload: 940.44Mbps

Download: 940.52 Mbps

Bi-Directional: 1804.27 Mbps

NAT (L2TP)

Upload: 845.64 Mbps

Download: 802.65 Mbps

Bi-Directional: 931.96 Mbps

NAT (PPTP)

Upload: 771.66 Mbps

Download: 874.81 Mbps

Bi-Directional: 999.54 Mbps

64 Byte Packet Forwarding Rate

Upload/Download: 1,402,238 pps

Bi-Directional: 1,681,548 pps

IPsec VPN Throughput

ESP-MD5-AES256: 171.26 Mbps

ESP-SHA1-AES256: 224.86 Mbps

ESP-SHA2-AES256: 248.04 Mbps

OpenVPN

21.70 Mbps

L2TP VPN Throughput

Unencrypted: 864.65 Mbps

Encrypted: 47.11 Mbps

PPTP VPN Throughput

Unencrypted: 703.20 Mbps

Encrypted: 76.65 Mbps

SSL VPN Throughput

-

66 Byte Packet forwarding rate

Upload/Download: 954.50 Mbps

Bi-Directional: 1130.00 Mbps

1,518 Byte Packet forwarding rate

Upload/Download: 997.50 Mbps

Bi-Directional: 1965.00 Mbps

Các tính năng cơ bản

Dạng kết nối WAN

Static/Dynamic IP

PPPoE

PPTP

L2TP

Mobile Broadband: 4G/3G modem for backup via USB port

MAC Clone

Modify WAN/LAN MAC Address

DHCP

DHCP Server/Client

DHCP Address Reservation

Multi-net DHCP

Multi-IP Interfaces

IPv6

StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough

VLAN

802.1Q VLAN

IPTV

IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Các tính năng nâng cao

Advanced Routing

Static Routing

Policy Routing

ACL

IP/Port/Protocol/Domain Name Filtering

Kiếm soát băng tần

IP-based Bandwidth Control

Load Balance

Intelligent Load Balance

Application Optimized Routing

Link Backup (Timing, Failover)

Online Detection

NAT

One-to-One NAT§

Multi-Net NAT

Virtual Server

Port Triggering§

NAT-DMZ

FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Bảo mật

SPI Firewall

VPN Passthrough

FTP/H.323/PPTP/SIP/IPsec ALG

DoS Defence, Ping of Death

Local Management

Session Limit

IP-based Session Limit

VPN

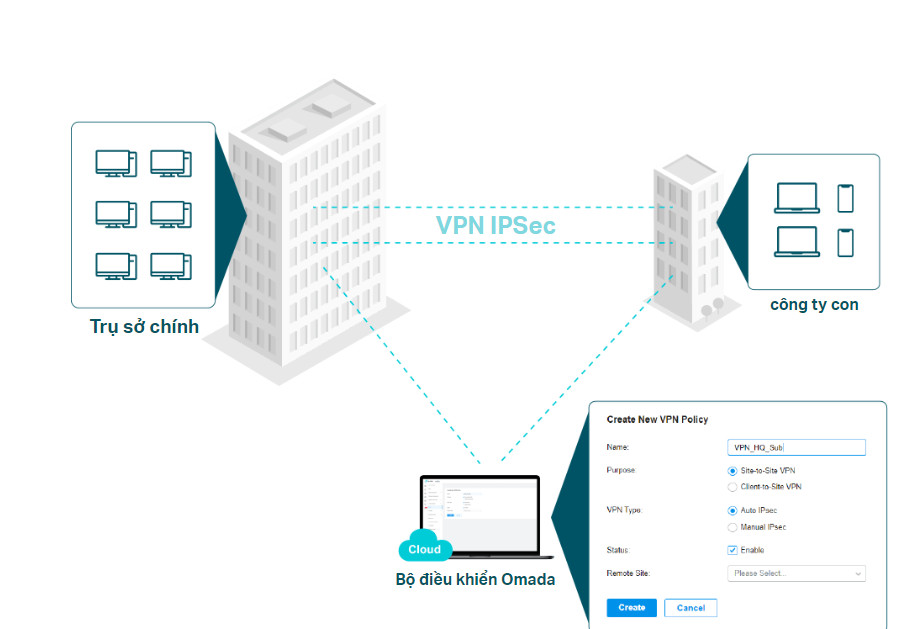

IPsec VPN

20 IPsec VPN Tunnels

LAN-to-LAN, Client-to-LAN

Main, Aggressive Negotiation Mode

DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

IKEv1/v2*

MD5, SHA1 Authentication Algorithm

NAT Traversal (NAT-T)

Dead Peer Detection (DPD)

Perfect Forward Secrecy (PFS)

*These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller

PPTP VPN

PPTP VPN Server

10 PPTP VPN Clients

16 Tunnels

PPTP with MPPE Encryption

L2TP VPN

L2TP VPN Server

10 L2TP VPN Clients

16 Tunnels

L2TP over IPSec

OpenVPN

OpenVPN Server

10 OpenVPN Clients

16 OpenVPN Tunnels

Bảo mật

Bộ lọc

WEB Group Filtering

URL Filtering

Web Security

ARP Inspection

Sending GARP Packets

ARP Scanning

IP-MAC Binding

Attack Defense

TCP/UDP/ICMP Flood Defense

Block TCP Scan (Stealth FIN/Xmas/Null)

Block Ping from WAN

Access Control

Source/Destination IP Based Access Control

Authentication

Web Authentication

No Authentication

Simple Password

Hotspot（Local User / Voucher / SMS / Radius）

External Radius Sever

External Portal Seve

Facebook

Quản lý

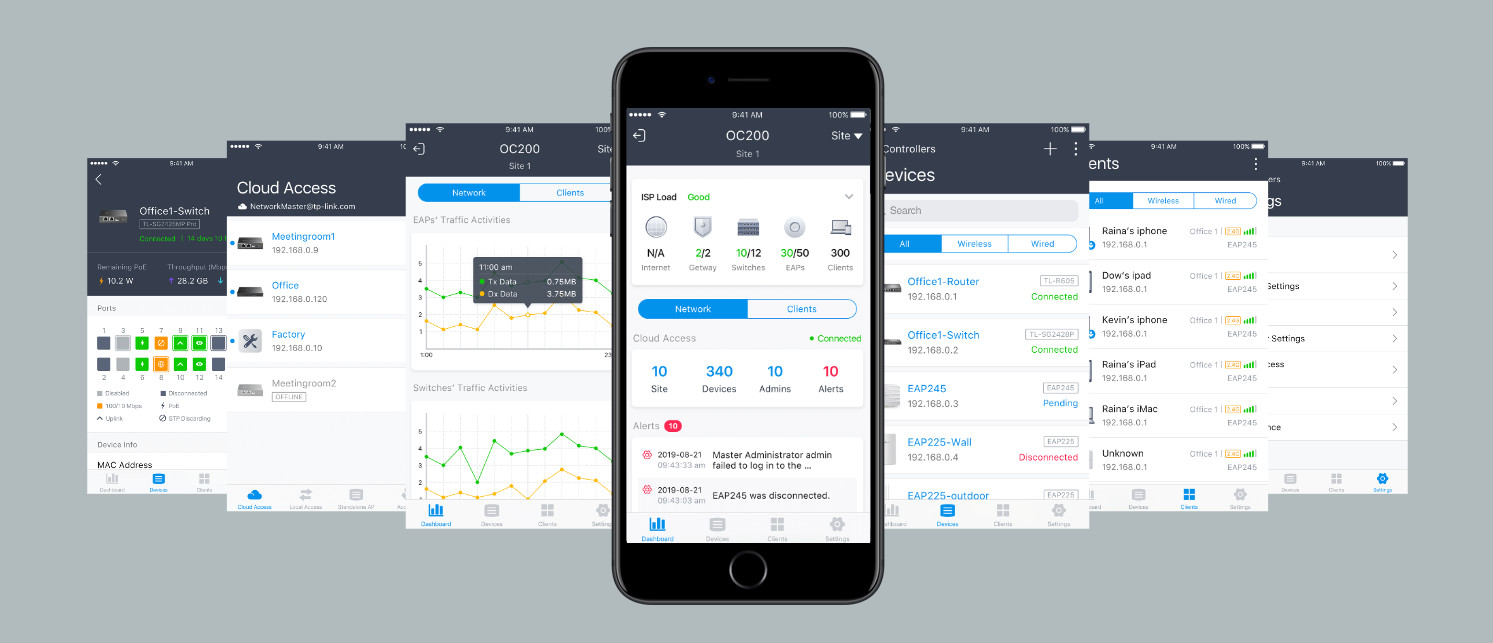

Omada App

Yes

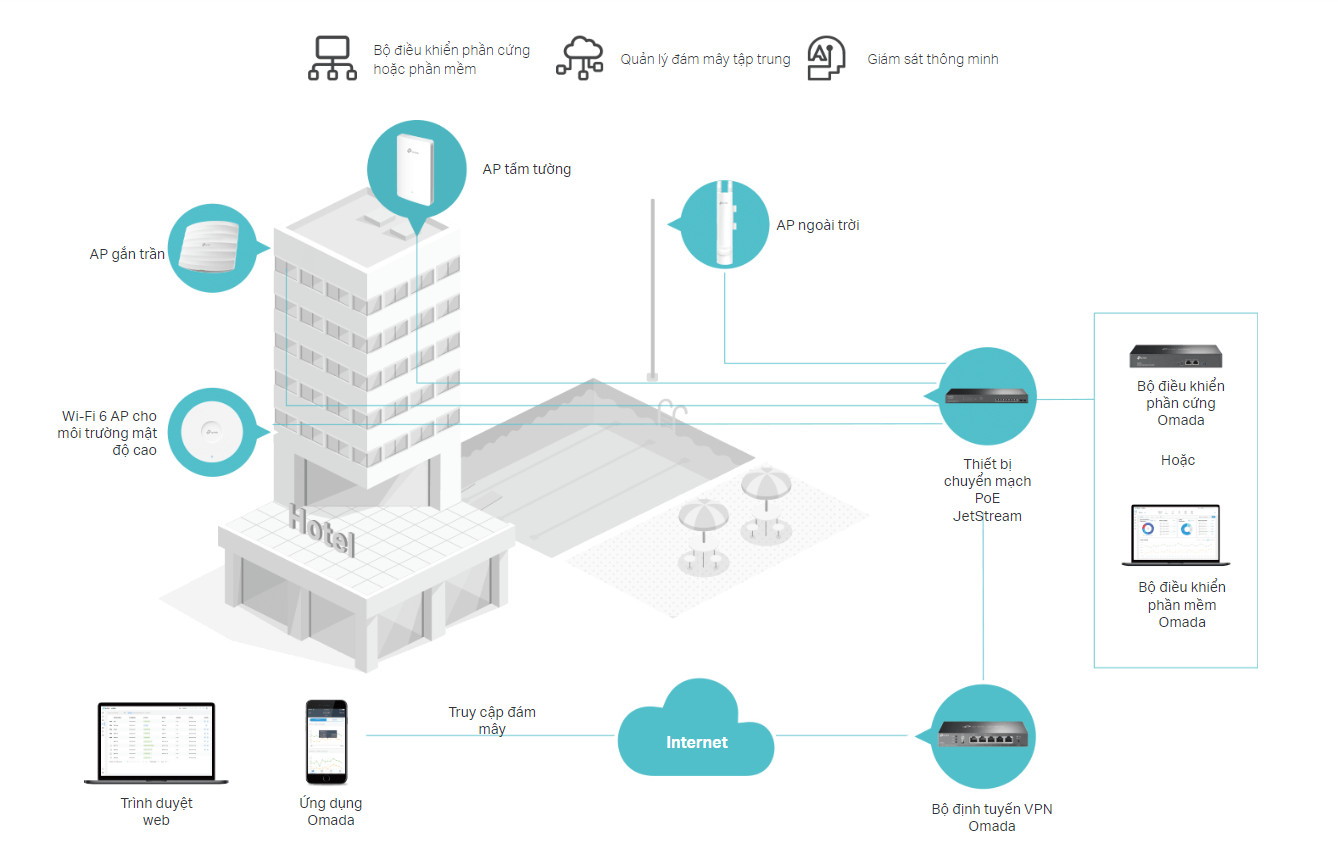

Centralized Management

Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Omada Cloud-Based Controller

Cloud Access

Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)

Dịch vụ

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance

Web Management Interface

Remote Management

Export & Import Configuration

SNMP v1/v2c/v3

Diagnostics (Ping & Traceroute)

NTP Synchronize

Syslog Support

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features

Automatic Device Discovery

Intelligent Network Monitoring

Abnormal Event Warnings

Unified Configuration

Reboot Schedule

Captive Portal Configuration

Khác

Chứng chỉ

CE, FCC, RoHS

Sản phẩm bao gồm

Gigabti VPN Router ER605

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Môi trường

Operating Temperature: 0–40 ℃ (32–104 ℉);

Storage Temperature: -40–70 ℃ (-40–158 ℉)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing
