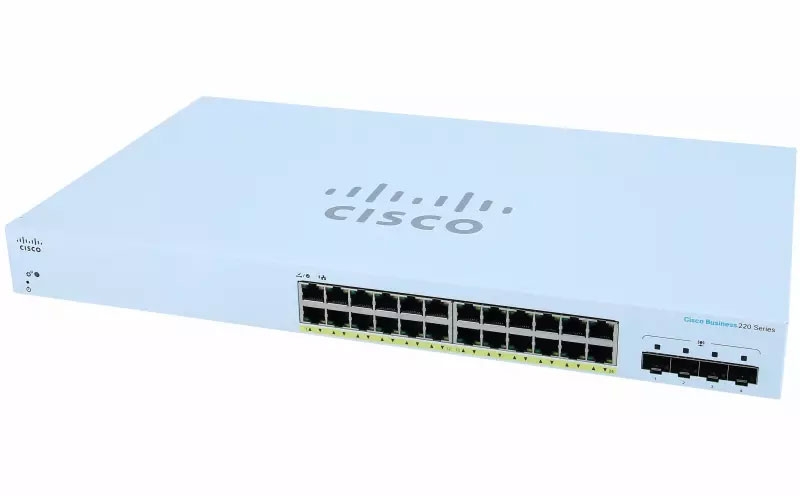

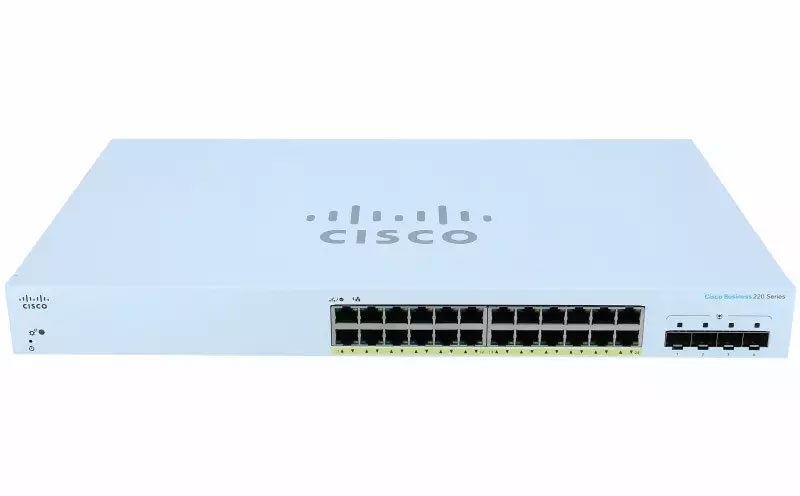

CBS220 Smart 24-port GE, 382W PoE+, 4 Gigabit SFP - CBS220-24FP-4G

Thương hiệu: CISCO Mã: CBS220-24FP-4G
Chất liệu: PoE SWITCH
Thương hiệu: CISCO   |   Tình trạng: Còn hàng
Giá: Liên hệ

Thiết bị Cisco CBS220-24FP-4G là một switch thông minh (smart switch) Gigabit Layer 2, cung cấp 24 cổng Ethernet PoE+ với tổng công suất 382W và 4 cổng SFP 1G để kết nối đường lên (uplink)

  • Tổng số cổng: 24 cổng Gigabit Ethernet RJ-45 và 4 cổng SFP 1G
  • Loại cổng PoE: Hỗ trợ PoE+ (IEEE 802.3af/at) trên tất cả 24 cổng
  • Tổng công suất PoE: 382W
  • Hiệu suất chuyển mạch: 56 Gbps
  • Tốc độ chuyển tiếp: 41.66 Mpps (gói 64 byte)
  • Quản lý: Giao diện web (Web UI), ứng dụng di động Cisco Business, Cisco Business Dashboard, SNMP
  • Tính năng Lớp 2: Hỗ trợ VLAN (256 VLAN), STP, bảo vệ chống chặn HOL (Head-of-Line), Jumbo frame (lên đến 9216 byte)
  • Bảo mật: ACL (Access Control Lists), bảo mật cổng 802.1X, kiểm soát bão (storm control), chống tấn công DoS
  • Hiệu quả năng lượng: Hỗ trợ Ethernet hiệu quả năng lượng (EEE - IEEE 802.3az)
  • Kích thước (R x D x C): 440 x 257 x 44 mm
  • Trọng lượng: 4.10 kg
Chính sách của chúng tôi
  • Miễn phí vận chuyển
    Miễn phí vận chuyển
  • Bảo hành từ 12 đến 36 tháng
    Bảo hành từ 12 đến 36 tháng
  • 100% hàng chính hãng
    100% hàng chính hãng
  • Đổi trả trong vòng 7 ngày nếu lỗi do nhà sản xuất
    Đổi trả trong vòng 7 ngày nếu lỗi do nhà sản xuất

Thiết Bị Mạng CBS220-24FP-4G-EU Switch Cisco Business 24 Ports 1GE PoE 382W

Cisco business CBS220-24FP-4G-EU là dòng switch small business có hỗ trợ PoE thế hệ mới của Cisco, với thiết kế 24 cổng 1G Ethernet PoE+ với tổng cổng suất PoE là 382W và 4 cổng SFP gigabit uplink.





 Switch PoE Cisco CBS220-24FP-4G-EU là dòng switch small business có hỗ trợ PoE thế hệ mới của Cisco, với thiết kế 24 cổng 1G Ethernet PoE+ với tổng cổng suất PoE là 382W và 4 cổng SFP gigabit uplink.

 Switch CBS220-24FP-4G có đầy đủ tính năng của layer 2 như Spanning Tree Protocol, Port grouping, VLAN, Auto voice VLAN, QinQ VLAN, và các tính năng bảo mật an toàn  và tin cậy như ACLs, Port security, RADIUS, TACACS+, MAC address filtering, Storm control, DoS protection,..



Thông tin chi tiết sản phẩm đang được cập nhật.
Thông số kỹ thuật
Model CBS220-24FP-4G-EU
Ports - Total System Ports: 28 Gigabit Ethernet
- RJ45 Ports: 24 Gigabit Ethernet
- Uplink Ports : 4 Gigabit Ethernet SFP
Power over Ethernet 802.3af PoE or 802.3at PoE+ delivered over any of the RJ-45 network ports
- PoE Power Budget: 382W
- Number of Ports That Support PoE: 24
Performance - Capacity in Millions of Packets per Second (mpps) with each packet being 64-bytes: 41.66
- Switching Capacity in Gigabits per Second (Gbps): 56
MAC Table Up to 8,192 Media Access Control (MAC) addresses
Jumbo Frame Frame sizes up to 9,216 supported
Buttons Reset button
LEDs System, Link/Act, Speed
Flash 64 MB
CPU memory 256 MB
Packet buffer 4.1 Mb
Supported SFP modules MGBSX1
MGBLX1
MGBLH1
MGBT1
GLC-SX-MMD
GLC-LH-SMD
GLC-BX-U
GLC-BX-D
GLC-TE
SFP-H10GB-CU1M
SFP-10G-SR
SFP-10G-LR
SFP-10G-SR-S
SFP-10G-LR-S
FAN (Number) 2
Acoustic Noise 25°C: 43.2 dB
MTBF at 25°C (hours) 588,411
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick
Power 100-240 V, 50-60 Hz, Internal
Power consumption
(worst case)
System Power Consumption:
- 110V=30.8W
- 220V=30.8W
Power Consumption (with PoE):
- 110V=459W
- 220V=445W
Unit dimensions
(W x D x H)
440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in)
Unit weight 4.10 kg (9.04 lb)
Package Contents ● Cisco Business CBS220-24FP-4G switch
● Power cord or adaptor
● Mounting kit
● Quick start guide
Layer 2 Switching • Spanning Tree Protocol (STP)
• Port grouping/Link Aggregation Control Protocol (LACP)
- Up to 8 groups
- Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation​
• VLAN
- Support for up to 256 active VLANs simultaneously
- Port-based and 802.1Q tag-based VLANs
- Management VLAN
- Guest VLAN
• Auto voice VLAN
• QinQ VLAN
• Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP)
• Head-of-Line (HOL) blocking
• Loopback Detection
• Automatic MediaDependent Interface Crossover (MDIX)
Security • ACLs Support for up to 512 rules
• Port security
• IEEE 802.1X (Authenticator role)
• RADIUS, TACACS+
• MAC address filtering
• Storm control
• DoS prevention
• STP Bridge Protocol Data Unit (BPDU) Guard
• Spanning Tree Protocol Loopback Guard
• Secure Shell (SSH) Protocol
• Secure Sockets Layer (SSL)
QoS • Priority levels: 8 hardware queues per port
• Scheduling
• Class of service
• Rate limiting
• Congestion avoidance
Multicast • Internet Group Management Protocol (IGMP) Versions 1, 2, and 3 Snooping
• IGMP querier
Management • Cisco Business Dashboard
• Cisco Business mobile app
• Cisco Network Plug and Play (PnP) agent
• Web user interface
• Text-editable config files
• SNMP
• Standard Management Information Bases (MIBs)
• Remote Monitoring (RMON)
• IPv4 and IPv6 dual stack
• Firmware upgrade
• Port mirroring
• DHCP (options 12, 66, 67, 82, 129, and 150)
• Time synchronization
• Login banner
• Other management
